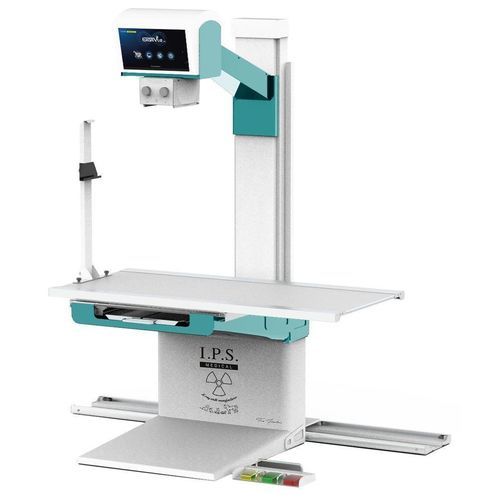

Digital veterinary X-ray system Divina Elite

with table

Overview
Divina Elite is a veterinary X‑ray radiography system with integrated direct digital panel and motorized stretcher table. It provides connectivity with any direct digital imaging system and is designed for orthopedic and exotic animal diagnostics. The rotating head and moving column enable multi-angle projections to facilitate faster, more precise imaging. Components and certifications updated to 2024. Custom design and construction available on request.

Main features

• Variable moving column
• Rotating head with multi-angle dynamics
• Floor track system
• Motorized stretcher/table with variable height
• Foot pedals for movement and motor brake
• Direct digital panel included
• NEMO SPACE VET interface
• Head rotation +/- 90° (optional)

Dimensions
L 150 x W 125 x H 205 cm - Floor track length: 200 cm

X-RAY GENERATOR
Monobloc generator
Max power: 30 kW
Max voltage: 125 kV
Max current: 400 mA
Exposure time range: 0.002 to 1 s
X-ray foot switch: 2-step, cable 6 m
Leakage radiation: < 3.5 μSv/h (IEC EN 60601-1-3)

X-RAY TUBE
Rotating anode X-ray tube
Focal spot: 0.6–1.3 mm
Anode angle: 15°
Heat capacity: 80 kJ – 107 KHU

ANTI-SCATTER GRID
Removable anti-scatter grid 35 x 43 cm, 103 lines/inch (standard)

POWER
Standard voltage: 230/240 V ±10% 50–60 Hz
Power consumption: < 1 A

OPTIONAL
X-ray hand switch
Table top up to 2.0 m on request
Removable grid 43 x 43 cm, 210 lines/inch (optional)
Custom colours on request
DR flat panel holder for lateral projections

TABLE / PATIENT SUPPORT
4-way patient support table with mechanical brakes
Maximum load: 100 kg
Table absorption thickness: 0.5–0.8 mm
Film-focus distance: 100 cm
Standard table top length: 200 cm (up to 2.0 m on request)
Foot pedals for table movement and motor brake

SCREEN FUNCTIONS
Automatic programmed radiographic technique (APR)
Selectable operating system
15'' touch screen monitor, multi-language
Anatomical programs programmable and reprogrammable by the operator
Patient parameter selection by weight and thickness

Notes
Designed specifically for veterinary radiology with movement dynamics suited to orthopedics and exotic animals.

Technical specifications

• Model name: Divina Elite
• Dimensions: L 150 x W 125 x H 205 cm; Floor track: 200 cm
• X-ray generator: Monobloc, max power 30 kW, max voltage 125 kV, max current 400 mA
• Exposure time: 0.002–1 s
• X-ray foot switch: 2-step, 6 m cable
• Leakage radiation: < 3.5 μSv/h (IEC EN 60601-1-3)
• X-ray tube: rotating anode; focal spot 0.6–1.3 mm; anode angle 15°; heat capacity 80 kJ–107 KHU
• Anti-scatter grid: removable 35 x 43 cm (103 lines/inch); optional 43 x 43 cm (210 lines/inch)
• Power: 230/240 V ±10% 50–60 Hz; consumption < 1 A
• Table: motorized with variable height; 4-way patient support; max capacity 100 kg; standard top length 200 cm (up to 2.0 m)
• Accessories: DR flat panel holder for lateral projections; NEMO SPACE VET interface
• Controls: 15'' touch screen multi-language with APR; reprogrammable anatomical presets
• Optional: head rotation ±90°; X-ray hand switch; custom colours
