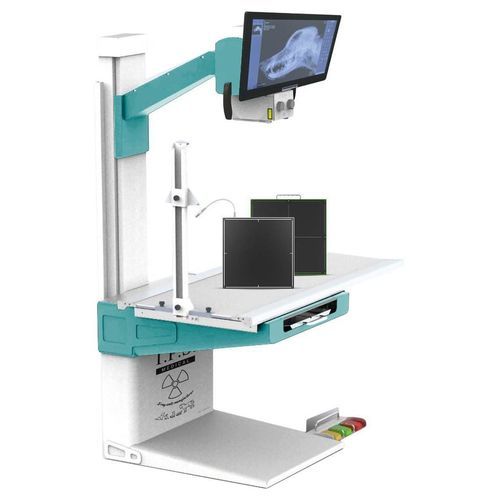

Digital veterinary X-ray system Divina Pro

with table

Description
Connectivity with any direct digital system for veterinary radiology. Motorized stretcher table with up-and-down movement to protect clinician health and improve intervention quality on animals. Components and certifications updated to 2024. Custom design and construction of radiological equipment available on request. Rotating head and moving column enable diagnosis on exotic animals and orthopedics, allowing radiographs at different angles to simplify and speed up the operator's work.

Main features

• Head rotation +/- 90° (optional)
• EIZO medical monitor with 7 m video cable
• 21" touch screen monitor (Full HD)
• NEMO SPACE VET interface
• Motorized diagnostic table with variable height
• Foot pedals for movement and motor brake
• Direct Digital Panel included
• Side panel holder for horizontal projections
• Variable column

Dimensions
L 150 x L 110 x H 200 cm

X-RAY GENERATOR
Monobloc
Max Power 30 kW
Max Voltage 125 kV
Max Current 400 mA
Exposure time selection from 0,002 to 1 s
X-ray foot switch in 2 steps, cable 6 m long
Leakage radiation < 3,5 μSv/h in accordance with IEC EN 60601-1-3

X-RAY TUBE
X-ray tube with rotating anode
Focal spot 0,6–1,3 mm
Anode angle 15°
Heat capacity 80 KJ – 107 KHU

ANTI-SCATTER GRID
Removable anti-scatter grid 35 x 43 cm 103 lines/inch (standard)

POWER
Standard voltage 230/240 V ± 10% 50–60 Hz
Power consumption < 1 A

COLLIMATOR
Manual multi-blade setting
Variable field at 43 x 43 cm @ 100 cm SID
High-intensity white LED lamp 160–220 lux at 100 cm with automatic switch

OPTIONAL

• X-ray hand switch
• Table top up to 2 m long on request
• Removable anti-scatter grid 43 x 43 cm 210 lines/inch
• Different colors available on request
• DR flat panel holder for lateral projections
• Floor track

Table / Patient support
Patient support table, 4-way with mechanical brakes
Max weight capacity 100 kg
Table absorption thickness 5 mm / 0,8 mm
Film-focus distance 100 cm
Standard table top length: 150 cm (up to 200 cm on request)
Foot pedals for table movement and motor brake
21" Full HD touch screen for improved operator efficiency

X-RAY DETECTOR
Wireless
Scintillator Direct Deposit CsI:Tl
Active area 433.5 x 433.5 mm
Pixel pitch 154 µm
Image acquisition time: 2–3 s (wired) - 4–5 s (wireless)

Wired
Scintillator Direct Deposit CsI:Tl
Active area 430 x 430 mm
Pixel pitch 140 µm
Image acquisition time: 2–4 s

SOFTWARE / INTERFACE
EXAMVUE DUO SOFTWARE: simple and intuitive software for patient and owner registration, anatomical part selection and veterinary-specific measurements with tutorial. Patient parameters setting by thickness. Anatomical parts programmable and reprogrammable on request. Professional positioning guide to assist veterinarians during examinations. The Full Digital line allows the entire examination process in a single interface for a smoother workflow.

Technical specifications

• Model: Divina Pro Full Digital
• Brand: I.P.S. Medical
• Dimensions: L 150 x L 110 x H 200 cm
• X-ray generator: Monobloc, up to 30 kW, up to 125 kV, up to 400 mA
• Exposure time range: 0,002 – 1 s
• X-ray tube: rotating anode; focal spot 0,6–1,3 mm; anode angle 15°; heat capacity 80 KJ – 107 KHU
• Anti-scatter grid: removable 35 x 43 cm (103 lpi); optional 43 x 43 cm (210 lpi)
• Power supply: 230/240 V ±10% 50–60 Hz; consumption < 1 A
• Detector options: wireless (433.5 x 433.5 mm, 154 µm) and wired (430 x 430 mm, 140 µm)
• Image acquisition time (typical): wired 2–4 s; wireless 4–5 s (varies by configuration)
• Table: motorized height, variable column, standard top 150 cm, max patient support 100 kg
• Controls: 21" touch screen, foot pedals for movement and motor brake
• Included: Direct Digital Panel, side panel holder for horizontal projections
• Optional: X-ray hand switch, extended table top, DR flat panel holder, floor track, custom colors
