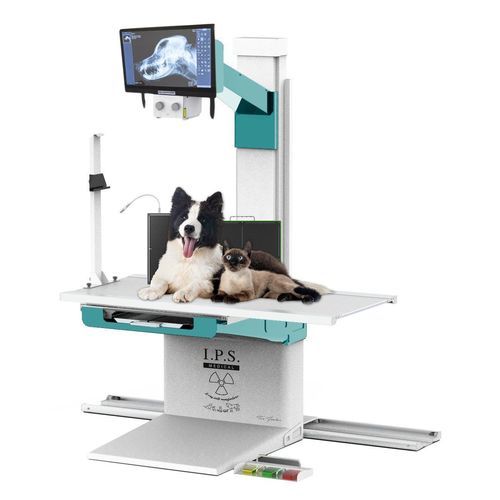

Digital veterinary X-ray system Divina Elite

with table

Overview
Integrated veterinary radiography solution combining direct digital panel management software and a motorized stretcher table to streamline diagnostics and clinical workflow. Rotating head, variable column and floor-track positioning enable angled projections for orthopaedics and exotic species. Components and certifications updated to 2024; custom configurations available on request.

Main concept
Variable column, rotating head and floor track system designed for flexible veterinary radiography and orthopaedic projections.

Key features

• Motorized stretcher table with vertical adjustment for clinician ergonomics and improved procedure handling
• Variable column and rotating head for angled and oblique projections
• Floor track (floor track system) for extended lateral positioning
• Direct Digital Panel included (Full Digital configuration)
• Side panel holder for horizontal projections
• Motor brake and foot pedals for controlled movement
• Connectivity with any direct digital system
• Components and certifications updated to 2024

Available accessories & optional items

• Head rotation +/- 90° (optional)
• EIZO medical monitor with 7 m video cable
• Second EIZO medical monitor 24” (optional)
• DR flat panel holder for lateral projections
• X-ray hand switch (optional)
• Table top up to 2 meters long on request
• Removable anti-scatter grid 43 x 43 cm 210 lines/inch (optional)
• Different colors available on request

Software (EXAMVUE DUO)

• Intuitive software for patient and owner registration, anatomical part selection and veterinary-specific measurements with tutorial
• Patient parameter settings including tissue thickness
• Anatomical programs configurable and reprogrammable by technical service
• Professional positioning guide for anatomically precise, high-quality images
• Full Digital workflow: entire exam managed within a single interface

X-ray detector
wireless | Scintillator Direct Deposit CsI:TI | Active Area 433.5 x 433.5 mm | Pixel pitch 154 µm | Image Acquisition Time: 2-3 sec (wired) - 4-5 sec (wireless)
wired | Scintillator Direct Deposit CsI:TI | Active Area 430 x 430 mm | Pixel pitch 140 µm | Image Acquisition Time: 2-4 sec

Dimensions
L 150 x W 110 x H 200 cm

X‑RAY GENERATOR
Monobloc
Max Power: 30 kW
Max Voltage: 125 kV
Max Current Supply: 400 mA
Exposure time selection: from 0.002 to 1 s
X‑ray foot switch in 2 steps, 6 m cable
Leakage radiation < 3.5 μSv/h (IEC EN 60601-1-3)

X‑RAY TUBE
Rotating anode X‑ray tube | Focal spot: 0.6 - 1.3 mm | Anode angle: 15° | Heat capacity: 80 KJ - 107 KHU

ANTI‑SCATTER GRID
Removable anti-scatter grid 35 x 43 cm 103 lines/inch (standard)

POWER
Standard Voltage: 230/240 V ±10% 50-60 Hz
Power consumption: < 1 A

COLLIMATOR
Manual field setting
Variable field at 43 x 43 cm @ 100 cm SID
High-intensity white LED lamp 160-220 lux at 100 cm with automatic switch

TABLE / PATIENT SUPPORT
Motorized stretcher table with vertical movement; 4-way patient support with mechanical brakes
Max load capacity: 100 kg
Table absorption thickness: approx. 5 mm
Film-focus distance: 100 cm
Standard tabletop length: 200 cm (table top up to 2 m on request)
Foot pedals for tabletop movement and motor brake
21” full HD touch screen for operator efficiency

Other components
DR flat panel holder for lateral projections
NEMO SPACE VET interface
Foot pedals and motor brake controls
Direct Digital Panel included

Notes
Components and certifications updated to 2024. Custom design and construction of radiological equipment available on request.

Technical specifications

• Model: Divina Elite Full Digital
• Dimensions: L 150 x W 110 x H 200 cm
• X-ray generator: Monobloc, max power 30 kW, max voltage 125 kV, max current 400 mA
• Exposure time: 0.002 - 1 s
• Leakage radiation: < 3.5 μSv/h (IEC EN 60601-1-3)
• X-ray tube: rotating anode, focal spot 0.6-1.3 mm, anode angle 15°
• Anti-scatter grid: removable 35 x 43 cm (103 lines/inch) standard; optional 43 x 43 cm (210 lines/inch)
• Collimator: manual field setting; variable range at 43 x 43 cm @ 100 cm SID; LED 160-220 lux
• Power: 230/240 V ±10% 50-60 Hz; consumption < 1 A
• Table: motorized vertical movement; capacity 100 kg; tabletop standard 200 cm (up to 2 m on request)
• Controls/accessories: foot pedals, X-ray foot switch 2-step (6 m cable), optional hand switch
• Software: EXAMVUE DUO — patient/owner registration, anatomical selection, veterinary measurements, positioning guide; single-interface Full Digital workflow
• Monitors: 21” full HD touch screen (operator); EIZO medical monitor with 7 m cable; second EIZO 24” optional
• Detector (wireless): CsI:TI scintillator, active area 433.5 x 433.5 mm, pixel pitch 154 µm, acquisition 4-5 s (wireless) / 2-3 s (wired)
• Detector (wired): CsI:TI scintillator, active area 430 x 430 mm, pixel pitch 140 µm, acquisition 2-4 s
• Floor track, rotating head and variable column for angled projections (exotics and orthopaedics)
• Customization: table length, colors, anti-scatter grids and other options on request
