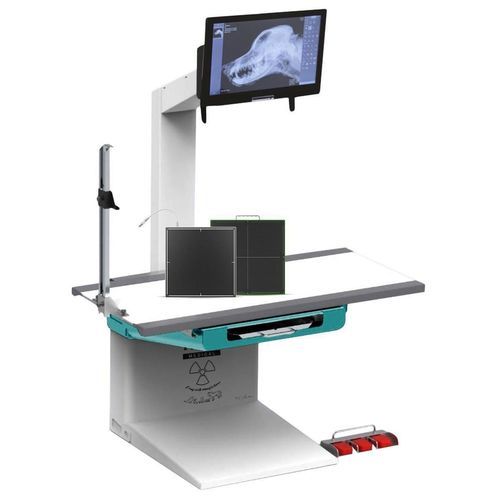

Digital veterinary X-ray system Divina Standard

with table

Product overview
Divina Standard Full Digital is a motorized, variable-height diagnostic radiology table for veterinary use with integrated direct-digital connectivity and components updated to 2024. It includes a rotating head and moving column for multi-angle projections, improving operator ergonomics and positioning flexibility.

Key features

• Compatibility with any direct digital radiography system
• Motorized diagnostic table with up/down movement to protect clinician ergonomics and facilitate procedures
• Rotating head and mobile column for exotic animals and orthopedic imaging
• Direct Digital flat panel detector included
• 21" full HD touch screen operator interface
• NEMO SPACE VET interface and EXAMVUE DUO workflow software

Main components

• X-ray generator: Monobloc
• X-ray tube: rotating anode
• Anti-scatter grid: removable
• DR flat panel detector: wired and wireless options
• Patient support table: 4-way movement, mechanical brakes

Specifications (tables)
Dimensions
L 150 x W 105 x H 205 cm

X-RAY GENERATOR
Monobloc
Max power: 30 kW
Max voltage: 125 kV
Max current supply: 400 mA
Exposure time selection: 0.002 to 1 s
X-ray foot switch: 2-step, cable 6 m long
Leakage radiation: < 3.5 μSv/h (IEC EN 60601-1-3)

X-RAY TUBE
Rotating anode X-ray tube
Focal spot: 0.6–1.3 mm
Anode angle: 15°
Heat capacity: 80 kJ – 107 KHU

ANTI-SCATTER GRID
Removable anti-scatter grid 35 x 43 cm, 103 lines/inch (standard)

POWER
Standard voltage: 230/240 V ±10% 50–60 Hz
Power consumption: < 1 A

COLLIMATOR
Manual field setting
Variable field at 43 x 43 cm @ 100 cm SID
High-intensity white LED lamp 160–220 lux @ 100 cm with automatic switch

Motorized diagnostic table / Patient support
4-way patient support table with mechanical brakes
Maximum patient weight capacity: 100 kg
Table absorption thickness: approx. 5 mm (0.8 mm listed)
Standard tabletop length: 150 cm (option up to 200 cm on request)
Foot pedals for tabletop movement and motor brake
21" full HD touch screen for operator efficiency

X-ray detector (DR flat panel)
Wireless
Scintillator: Direct Deposit CsI:Tl
Active area: 433.5 x 433.5 mm
Pixel pitch: 154 µm
Image acquisition time: 4–5 s (wireless)

Wired
Scintillator: Direct Deposit CsI:Tl
Active area: 430 x 430 mm
Pixel pitch: 140 µm
Image acquisition time: 2–4 s (wired)

Software and monitors
EXAMVUE DUO: patient and owner registration, anatomical part selection, veterinary-specific measurements and tutorial
Programmable anatomical parts and patient thickness parameter setting; customization on request by technical service
Optional second EIZO 24" medical monitor and EIZO medical monitor with 7 m video cable
NEMO SPACE VET interface for workflow integration

Included items

• Motorized diagnostic table with variable height
• Foot pedals for movement and motor brake
• Direct Digital flat panel detector included
• Side panel holder for horizontal projections

Optional

• Head rotation +/- 90° (optional)
• X-ray hand switch
• Tabletop up to 2 m long on request
• Removable anti-scatter grid 43 x 43 cm 210 lines/inch
• Custom colors available on request
• DR flat panel holder for lateral projections
• Mobile column and rotating head +/- 90°
• Floor track

Technical specifications

• Model: Divina Standard Full Digital
• Dimensions: L 150 x W 105 x H 205 cm
• X-ray generator: Monobloc, Max power 30 kW, Max voltage 125 kV, Max supply 400 mA
• Exposure time selection: 0.002 to 1 s
• Leakage radiation: < 3.5 μSv/h (IEC EN 60601-1-3)
• X-ray tube: rotating anode; focal spot 0.6–1.3 mm; anode angle 15°; heat capacity 80 kJ – 107 KHU
• Anti-scatter grid: removable 35 x 43 cm (103 lines/inch) standard; optional 43 x 43 cm (210 lines/inch)
• Power: 230/240 V ±10% 50–60 Hz; consumption < 1 A
• Collimator: manual field setting; variable range at 43 x 43 cm @ 100 cm SID; LED lamp 160–220 lux @100 cm with auto switch
• Motorized table: variable height, standard top length 150 cm (option up to 200 cm), max patient support 100 kg, table absorption thickness approx. 5 mm
• Patient support: 4-way movement with mechanical brakes
• Controls: foot pedals for table movement and motor brake
• Detector: CsI:Tl scintillator; wired active area 430 x 430 mm (pixel pitch 140 µm, acquisition 2–4 s); wireless active area 433.5 x 433.5 mm (pixel pitch 154 µm, acquisition 4–5 s)
• Software: EXAMVUE DUO (veterinary workflow, measurements, tutorial); NEMO SPACE VET interface
• Displays: 21" full HD touch screen; optional second EIZO 24" medical monitor
• Accessories: X-ray foot switch (2-step, 6 m cable) included; side panel holder for horizontal projections
• Options: head rotation +/-90°, mobile column with rotating head, floor track, hand switch, color customization
