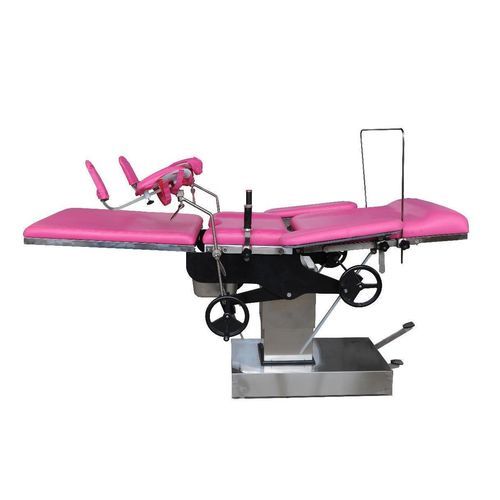

Gynecological operating table FY-V02-2

hydraulicadjustable heightwith legrest

Overview
The FY-V02-2 hydraulic obstetric table is designed for gynecological examination, diagnosis, delivery and minor surgical procedures. Height is adjusted manually via a foot pedal; back and Trendelenburg adjustments are made by handwheels. The column and base are manufactured from #304 stainless steel for clinical environments.

Key features

• Intended for gynecology examination, diagnosis, delivery and operations.
• Manual hydraulic height adjustment operated by foot pedal.
• Table panel frame with spray-coated finish; column and base in #304 stainless steel.
• Guide rails at both ends to mount accessories.
• Back plate and Trendelenburg adjustments via handwheels located under the respective plates.
• Detachable leg board for convenient gynecological access.

Technical specifications

• Overall dimension: 2000 × 600 mm
• Leg board size: 750 × 600 mm
• Height adjustment range: 620–860 mm
• Trendelenburg angle: +8° / -22°
• Back section adjustment: +70° / -10°
• Operation mode: manual hydraulic with foot pedal

Applications & handling

• Suitable for gynecological exams, childbirth and minor surgical procedures.
• Accessories can be mounted on guide rails at both ends for procedural flexibility.
• Back and Trendelenburg adjustments are accessible via handwheels beneath the plates.
• Detachable leg board facilitates examination access; follow recommended maintenance for hydraulic components.
