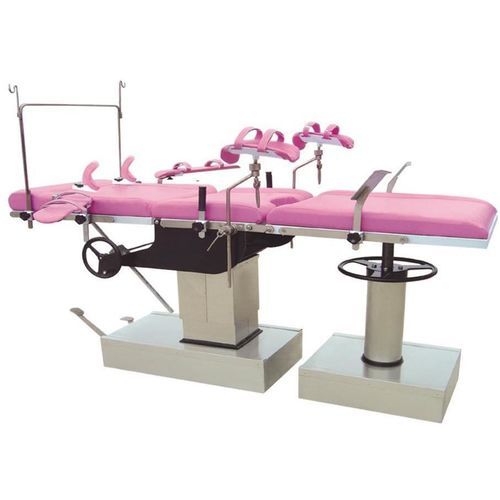

Gynecological operating table FY-V02-3

hydraulicadjustable heightwith legrest

Features:

• Designed for gynecology examinations, obstetric delivery and gynecological operations.
• Manual hydraulic height adjustment operated by foot pedal.
• Table panel frame with spray-coated finish; column and base made of #304 stainless steel.
• Guide rails at both ends for mounting accessories.
• Back section adjustable via handwheel located under the back plate (+45°/-10°).
• Detachable auxiliary table; auxiliary height adjusted by handwheels.

Specification:Dimension: 1900×600 mm
Leg board: 750×600 mm
Height adjustment: 650-900 mm
Back section adjustment: +45°/-10°

Technical specifications:

• Model: FY-V02-3
• Use: gynecology examinations, diagnosis, delivery and operations
• Type: manual hydraulic obstetric table (foot pedal height adjustment)
• Table panel frame: spray-coated
• Column and base material: #304 stainless steel
• Guide rails at both ends to carry accessories
• Back plate adjustment: handwheel under the back plate (+45°/-10°)
• Auxiliary table: detachable, height adjusted by handwheels
• Dimensions: 1900×600 mm
• Leg board size: 750×600 mm
• Height adjustment range: 650-900 mm
