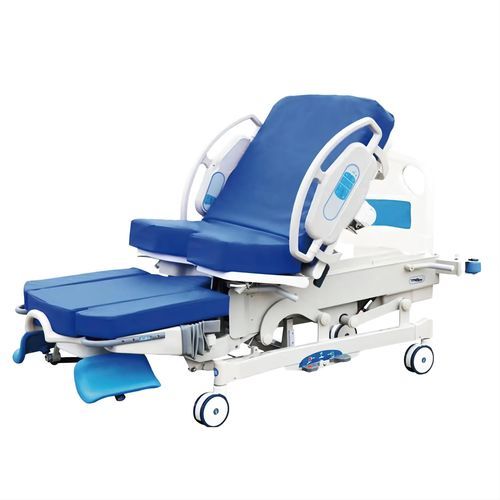

Electric delivery table FY-V02-C2(CPR)
floor-mounted

Electric delivery table - FY-V02-C2(CPR) - Jiangsu Fuyou Medical - floor-mounted
Electric delivery table - FY-V02-C2(CPR) - Jiangsu Fuyou Medical - floor-mounted
Add to favorites
Compare this product
Go to the Jiangsu Fuyou Medical website for more information

Characteristics

Operation
electric
Installation
floor-mounted
Lenght

2,350 mm
(92.5 in)

Width

1,040 mm
(40.9 in)

Height

Min.: 480 mm
(18.9 in)

Max.: 880 mm
(34.6 in)

Description

Product overview
  • Integrated LDR delivery bed combining labor reception, preparation, delivery, postpartum rest and gynecological procedures and examinations.
  • Equipped with reputable-brand motors for smooth, low-noise operation; imported motor optional.
  • Designed to reduce nursing workload with intuitive controls located inside and outside the guardrails; detachable assistant table for examinations.

Technical data
Dimension: 2350 x 1040 mm
Bed surface size: 2030 x 860 mm

Functions
  • Height adjustment (electric): 480 - 880 mm
  • Back section adjustment (electric): up to +75°
  • Sitting board adjustment (electric): up to +15°
  • Leg board adjustment (electric): 0 - 200 mm; leg board angle up to +90°; horizontal adjustment ≥90°
  • Trendelenburg tilt (air spring): -8°
  • CPR function with one-button quick release
  • Battery backup / power storage system for uninterrupted operation
  • Emergency stop switch

Advantages
  • Main drive: DC24V linear motor (standard Chinese brand; imported motor optional)
  • Motorized overall lifting of back and knee sections
  • Split lift guardrails with embedded operation buttons on both sides for patient safety and easy control
  • Bed board material: ABS engineering plastic or optional solid wood
  • Casters: 150 mm central-control double-sided castors
  • Hip position options: V-cut or straight-edge mattress
  • Dedicated waste basin for LDR maternity beds
  • Control options: embedded guardrail keys and central nurse station
  • One-button rapid bilateral CPR release to speed up resuscitation
  • Power storage system enables continuous operation during power interruption
  • Ultra-low starting height: 500 mm for easier transfer of patients
  • Mattress: memory foam
  • Central control brake system enhances bed stability
  • DC motor lifting system: constant speed, low noise, low voltage (24V)

Technical specifications
  • Model: FY-V02-C2(CPR)
  • Dimension: 2350 x 1040 mm
  • Bed surface size: 2030 x 860 mm
  • Height adjustment (electric): 480 - 880 mm
  • Back section adjustment (electric): up to +75°
  • Sitting board adjustment (electric): up to +15°
  • Leg board adjustment (electric): 0 - 200 mm; leg board angle up to +90°; horizontal adjustment ≥90°
  • Trendelenburg tilt (air spring): -8°
  • CPR function with one-button quick release
  • Battery backup / power storage system
  • Emergency stop switch
  • Main drive: DC24V linear motor (Chinese brand standard; imported optional)
  • Bed board materials: ABS engineering plastic or optional solid wood
  • Casters: 150 mm central-control double-sided castors
  • Hip position: V-cut or straight-edge mattress
  • Dedicated waste basin for LDR maternity beds
  • Control: embedded operation buttons on guardrails and central nurse station option
  • Ultra-low starting height: 500 mm
  • Mattress: memory foam
  • Central control brake system
  • Silent constant-speed DC lifting system
