Gynecological examination table FY-V02-B3

gynecologyfor pregnant womenelectric

Overview

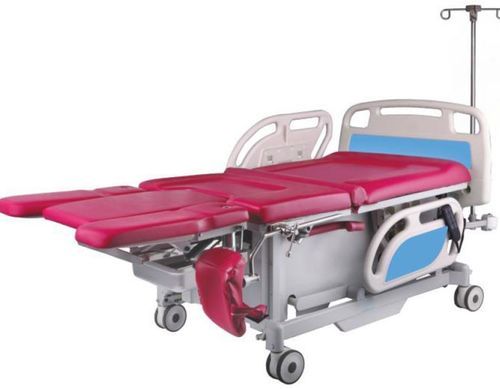

This electric obstetric table FY-V02-B3 is designed for gynecology and obstetrics: examinations, diagnosis, labor, delivery and recovery. It integrates motorized adjustments, patient protection features and emergency functions for clinical environments.

Key features

• Suitable for gynecology and obstetrics: examination, diagnosis, labor, delivery, recovery
• Headboard and retractable guardrails to protect the patient
• Motorized height, back and sitting adjustments with branded motors for smooth, quiet operation
• Retractable leg section for flexible positioning
• 125 mm castors with central locking system for easy movement and fixation
• CPR function on both sides for emergency use
• Equipped with storage battery and emergency stop

Technical specifications

• Overall dimension: 2100×940 mm (assisting table: 400×570 mm)
• Height adjustment (electric): 660–960 mm
• Back section adjustment (electric): +75°
• Sitting board adjustment (electric): +15°
• Trendelenburg (electric): +5° / -15°
• Castors: 125 mm with central control
• CPR function; storage battery; emergency stop

Applications

• Delivery rooms and labor wards
• Gynecology and obstetrics clinics
• Outpatient and examination rooms

Safety & options

• Emergency stop and battery backup for continuity of care
• Central locking castors for secure positioning
• Optional accessories and configurations available on request
