Electric delivery table FY-V02-C2（I）

trolley-mounted

Overview:

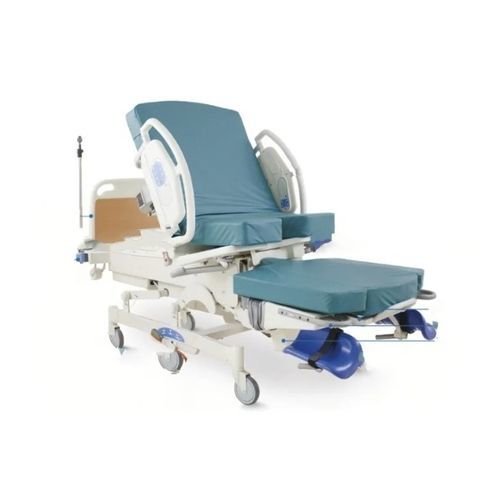

The FY-V02-C2（I）electric obstetric table is an integrated delivery bed designed for labor reception, preparation, delivery, postpartum rest and gynecological procedures. It provides electrically controlled adjustments for height, back, sitting board and leg sections and includes safety and emergency functions.

Key features:

• Integrated functions: labor reception, delivery, rest, gynecological surgery and examination.
• Electric drives for height and section adjustments with low-noise operation.
• User-friendly controls located on inner and outer guardrails for patient and caregiver access.
• Detachable assistant table to facilitate examinations and procedures.
• Designed to reduce staff physical workload and simplify handling during delivery.

Technical specifications:

• Overall dimension: 2320 × 990 mm
• Height adjustment (electric): 485–860 mm
• Back section adjustment (electric): +60°
• Sitting board adjustment (electric): +15°
• Leg board adjustment (electric): 0–205 mm
• Trendelenburg (electric): -8°
• Leg board horizontal adjustment: ≥90°
• Leg board adjustment: +90°
• Other functions: CPR function, backup battery, emergency stop switch

Applications and recommendations:

• Suitable for maternity wards, delivery rooms, birthing centers and gynecology operating rooms.
• Recommend regular maintenance of electric actuators and battery checks to ensure emergency functions.
• Train staff on guardrail controls and emergency stop/CPR procedures before clinical use.
