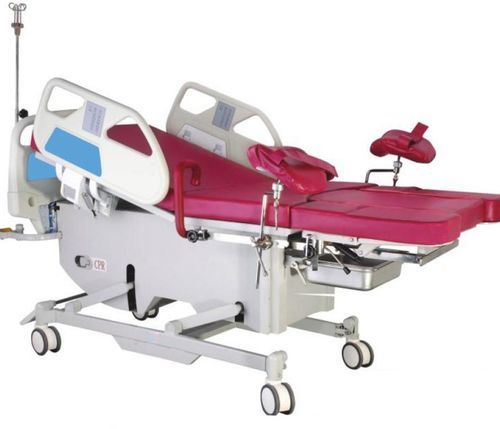

Gynecological operating table FY-V02-B3（I）

electricadjustable heightwith legrest

Overview:
Electric obstetric table FY-V02-B3（I）designed for gynecology and obstetrics: examination, diagnosis, labor, delivery and postpartum recovery.

Key features:

• Headboard and ABS guardrails with internal and external controllers to secure the patient
• Electric adjustment of height (660–960 mm), back section (+75°) and sitting section (+15°)
• Trendelenburg: +5° / -15°; CPR function available on both sides
• Retractable leg section for improved access during delivery
• 125 mm castors with central control system for easy movement and locking
• Equipped with well-known brand motors for smooth and quiet operation

Specifications:

• Overall dimension: 2100 × 940 mm (assisting table 400 × 570 mm)
• Height adjustment (electric): 660–960 mm
• Back section adjustment (electric): +75°
• Sitting board adjustment (electric): +15°
• Trendelenburg (electric): +5° / -15°
• CPR function: available on both sides

Safety and accessories:

• Headboard and ABS guardrails with internal and external controllers
• Storage battery and emergency stop
• Central control system for 125 mm castors

Applications:

• Delivery rooms, maternity wards, gynecology and obstetric units
