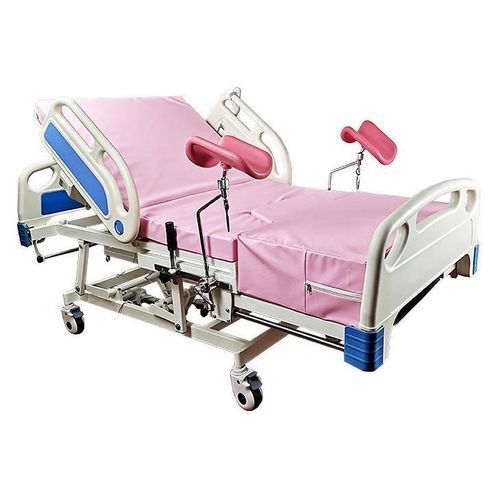

Electric delivery chair FY-V02-C3

trolley-mounted

Features

• The bed uses ABS head and footboard: very light weight, easy to install and detach, with bumper to protect the knee.
• Two ABS engineering plastic guard rails, collapsible design, easy to operate and providing effective protection.
• The bed adopts three motors, controlled with one wired handset; handset has a hook on the back for convenience.
• High density foam leg support with artificial leather cover, ergonomic design for increased comfort.
• Dia. 5" swivel casters with brake, operating with very low noise.

Specification
Dimension: 2080 x 980 mm
Height adjustment (electric): 680-900 mm
Back Section Adjustment (electric): 0-65°
Trendelenburg (electric): +17° / -17°

Technical specifications

• Model: FY-V02-C3
• Frame fittings: ABS headboard and footboard
• Guard rails: Two collapsible ABS engineering plastic rails
• Drive: Three electric motors with wired handset
• Leg support: High density foam with artificial leather cover, ergonomic
• Casters: 5" swivel casters with brakes, low noise
• Overall dimension: 2080 x 980 mm
• Height range (electric): 680 - 900 mm
• Back section travel (electric): 0 - 65°
• Trendelenburg / Reverse Trendelenburg (electric): +17° / -17°
