Hospital bed V2k

nursing homeintensive caremanual

Product overview

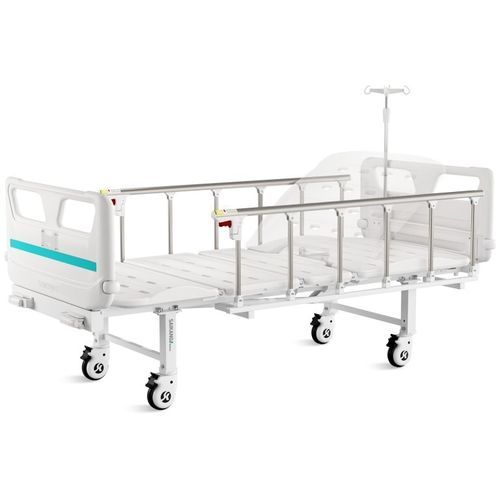

V2k two-crank manual hospital bed with manual backrest and knee-rest adjustment, safe working load 200 kg, foldable siderails, integrated easy-clean PP head/foot boards and sectional PP platform.

Highlights

• Two-crank manual adjustment for back and knee sections (electricity-independent)
• Fixed ward height 500 mm for standardized installations
• Integrated PP platform and PP head/foot boards for easy cleaning and disinfection
• 5" covered TPR castors designed for long wear and dynamic durability
• Ward-ready accessories: foldable siderails, IV pole, drainage hooks, bumper wheels

Platform
Integrated PP platform manufactured with advanced technology. 4–5 section design enables independent removal and simplified maintenance. Seat area expands when the back section is elevated to improve patient comfort; seat compensation reduces foam depression on the seat panel.

Castors
5" covered castors with TPR tires for wear resistance. Anti-winding hard-shell cover formed without bolts. Passed dynamic test: obstacle passing 40,000 cycles under the standard 200 kg whole-bed load.

Head & Foot Board
Plug-in type head and foot boards made of LG Chem fresh PP material. Equipped with φ65 mm bumper wheels to prevent collisions.

Mattress Retainer
Platform-integrated mattress retainers at both sides of the back and leg sections, with a 33 mm high border.

Guardrail
Siderails constructed with an aluminum alloy horizontal bar, six vertical stainless-steel poles and a plastic handle.

Other Ward Features

• Horizontal corner bumper wheels for bed and wall protection
• Plastic movable drainage hooks (30 x 50 mm)
• Stainless steel IV pole with four plastic hooks (15 kg capacity)

Optional / Additional Functions

• Auto-regression function (back section)
• Utility shelf
• Trapeze bracket / pole

Technical Parameters

• External size (L x W): 2130 x 995 mm
• Mattress platform: 1925 x 900 mm
• Safe working load: 200 kg
• Height (fixed): 500 mm
• Back-rest adjustment: 0–70° (±10°)
• Knee-rest adjustment: 0–38° (±10°)
• Adjustment method: two manual cranks (mechanical)
• Bed structure and head/foot boards: PP (easy-clean)
• Castors: 5" covered TPR, dynamic test passed
• Siderails: aluminum alloy horizontal bar with stainless-steel vertical poles and plastic handle
• Accessories included: IV pole, drainage hooks, bumper wheels

Technical Configuration (standard)

• Manual crank: 2 pcs
• 5" covered castors: 4 pcs
• Foldable siderail: 1 set
• PP head & foot boards with safelock and φ65 bumper wheels: 1 set
• PP bed platform with integrated mattress retainer: 1 set
• IV pole (4 hooks): 1 set
• IV pole provision: 4 pcs
• Drainage hook: 2 pcs
