Hospital bed V3k

nursing homeintensive caremanual

Overview

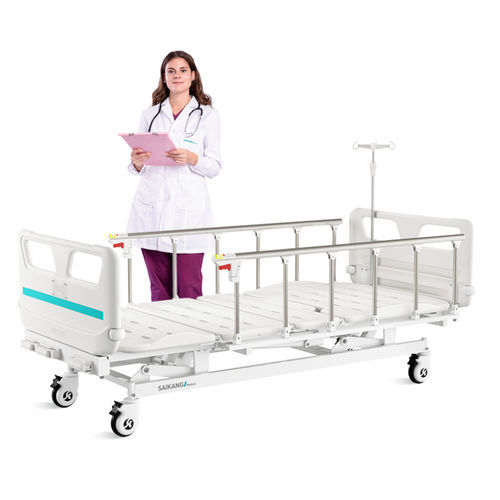

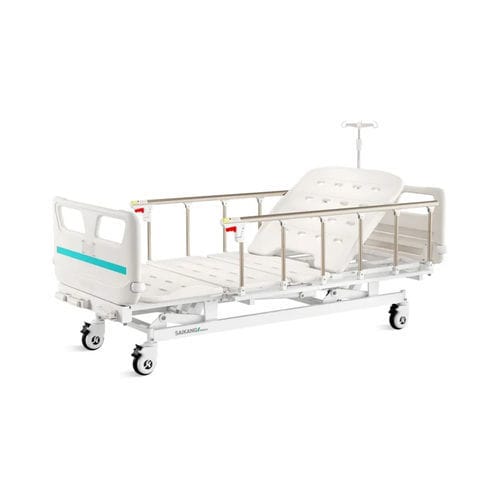

The V3k three-crank manual hospital bed is a mechanical, three-function patient bed designed for clinical wards and healthcare projects where electrical operation is not required. Key features include a sectional PP platform, three manual cranks for backrest/knee/height adjustment, integrated mattress retainers, aluminium-alloy collapsible side rails with safe locks, protected 5" castors and bed-end bumper wheels, and a selection of ward accessories (IV pole, drainage hooks, optional auto-regression, utility shelf, trapeze bracket).

Highlights

• Three-crank manual adjustment: backrest, knee-rest and nursing height without electricity.
• Adjustable working height range suitable for nursing workflows.
• Easy-clean PP bed ends and sectional PP platform to simplify disinfection and infection control.
• Protected 5" castors and bumper wheels for ward protection and mobility under load.
• Integrated mattress retainer at side of back and leg sections to secure mattress.
• Optional items: auto-regression function (back section), utility shelf, trapeze bracket/pole.

Platform
Integrated PP bed platform manufactured with advanced processes. 4–5 section platform enables independent installation and easier maintenance. Seat area enlarges when back part is raised to increase patient comfort and reduces sponge depression at the seat panel.

Castors
5" covered castors with TPR tire engineered for durability (TPR performance tested for extended running). Anti-winding hard shell cover formed without bolts. Dynamic tests passed: 40,000 obstacle passes under 200 kg whole-bed load.

Head & Foot Board
LG Chem fresh PP material, plugin type. Equipped with Ф65 bumper wheels to prevent collision.

Mattress Retainer
Platform-integrated mattress retainers at both sides of the back and leg section, with a 33 mm border height.

Guardrail
Aluminium alloy 6-staff collapsed-type side rail with safe lock.

Additional Ward Accessories

• Wall bumper wheel: horizontal corner bumpers at the outer periphery to protect bed and wall.
• Drainage hooks: mobile plastic drainage hooks (2 pcs standard).
• IV pole: stainless steel IV pole (bearing 15 kg) with 4 hooks standard.

Project & Procurement Value
The V3k manual bed is suitable for new hospital projects, ward renovation and public procurement where a standardized manual bed (three-crank, defined dimensions and load capacity) is required. Advantages include lower procurement and long-term maintenance cost, independence from electrical power sources, mechanical reliability and suitability for bulk orders and multi-site standardization.

Technical Parameters (table)
External size (LxW): 2130x995 mm
Mattress platform: 1925x900 mm
Safe working load: 200 kg
Height adjustment: 420-730 mm
Back-rest adjustment: 0-70° (±10°)
Knee-rest adjustment: 0-38° (±10°)

Technical Configuration (table)
Manual crank: 3 pcs
5" covered castors: 4 pcs
Foldable side rail: 1 set
PP bed ends with safe lock and Ф65 bumper wheels: 1 set
PP bed platform with integrated mattress retainer: 1 set
IV pole (4 hooks): 1 set
IV pole provision: 4 pcs
Drainage hook: 2 pcs

Optional

• Auto-regression function (back section)
• Utility shelf
• Trapeze bracket / trapeze pole

Caractéristiques / spécifications techniques

• Model: V3k three-crank manual hospital bed
• External dimensions: 2130 x 995 mm
• Mattress platform: 1925 x 900 mm
• Safe working load (SWL): 200 kg
• Height adjustment range: 420–730 mm
• Backrest angle range: 0–70° (±10°)
• Knee-rest angle range: 0–38° (±10°)
• Manual crank quantity: 3
• Castors: 5" covered TPR castors, 4 pcs (protected design)
• Side rails: Aluminium alloy, 6-staff, collapsed type with safe lock
• Mattress retainer: integrated on platform sides, 33 mm border
• Ward accessories included: IV pole (4 hooks), drainage hooks (2 pcs)
• Optional: auto-regression, utility shelf, trapeze bracket
