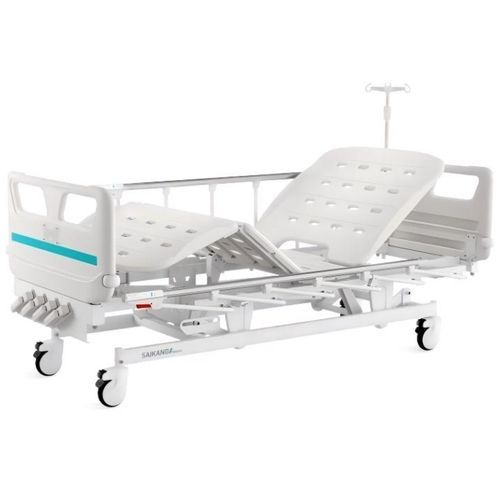

Hospital bed V4W

manualtiltingreverse Trendelenburg

Overview
The V4W manual hospital bed is a mechanically operated patient bed with a four-crank system that provides five positioning functions (backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg) without electrical power. It is designed for clinical wards and procurement projects that require reliable mechanical positioning, low maintenance and electrical independence. The bed features an integrated 4–5 section PP platform to reduce sponge depression at the seat panel and enlarge the seat area when the back section is raised, foldable L-shaped guardrails with ProErgo-Handle™, PP head/foot boards and Φ65 bumper wheels.

Highlights

• Platform: Integrated PP bed platform, available in 4–5 sections; independent installation for maintenance; enlarged seat area when back section is raised; reduces seat-panel depression.
• Castors: 5” hardshell castors with TPR tires and anti-winding cover, designed to pass dynamic obstacle tests at 200 kg load.
• Head & Foot Boards: LG Chem PP material, plug-in type; equipped with Φ65 bumper wheels to reduce impact.
• Wall bumper wheel: Horizontal corner bumpers at outermost periphery to protect bed and wall.
• Guardrail: L-shaped foldable, patented design with bent-tube installation, anti-pinch and stable (no shaking).
• Mattress retainer: Integrated on both sides of back and leg sections with 33 mm high border.
• Accessories: Stainless steel IV pole (15 kg capacity), mobile plastic drainage hooks, foldable side rail with ProErgo-Handle™.

Technical Parameters
External size (L x W): 2130 x 1020 mm
Mattress platform: 1925 x 900 mm
Safe working load: 200 kg
Height adjustment: 475–725 mm
Back-rest adjustment: 0–70° (±5°)
Knee-rest adjustment: 0–38° (±5°)
Trendelenburg: 0–12°
Reverse Trendelenburg: 0–12°

Technical configuration

• Manual crank: 4 pcs (backrest, knee-rest, height, platform tilt)
• 5” hardshell castors: 4 pcs
• Foldable side rail with ProErgo-Handle™: 1 set
• PP head & foot boards with safe lock and Φ65 bumper wheels: 1 set
• PP bed platform with integrated mattress retainer: 1 set
• IV pole (stainless steel) with 4 hooks: 1 set; IV pole provision: 4 pcs
• Drainage hook: 2 pcs

Optional & Additional features

• Auto-regression (back section) (option)
• Utility shelf (option)
• Trapeze bracket/pole (option)
• Optional color customization for headboards, footboards and ABS side rails for bulk orders (MOQ apply)

Applications / Procurement value

• Suitable for new hospital projects, ward upgrades, post-operative units, recovery wards and multi-site procurement where electrical independence and defined mechanical positioning are required.
• Delivers five mechanical positioning functions with low total cost of ownership and simplified maintenance.

Specifications

• External size (L x W): 2130 x 1020 mm
• Mattress platform size: 1925 x 900 mm
• Safe working load: 200 kg
• Height adjustment range: 475–725 mm
• Back-rest adjustment: 0–70° (±5°)
• Knee-rest adjustment: 0–38° (±5°)
• Trendelenburg / Reverse Trendelenburg: 0–12°
• Manual cranks: 4 pcs
• Castors: 5" hardshell, 4 pcs
• Guardrail: L-shaped foldable with anti-pinch design and ProErgo-Handle™
• IV pole: stainless steel, 15 kg capacity; 4-hook pole included
• Mattress retainer: integrated on platform sides, height 33 mm
• Standard accessories: foldable side rails, Φ65 bumpers, 2 drainage hooks
