Hospital bed K3k

nursing homemanualpediatric

Product Overview

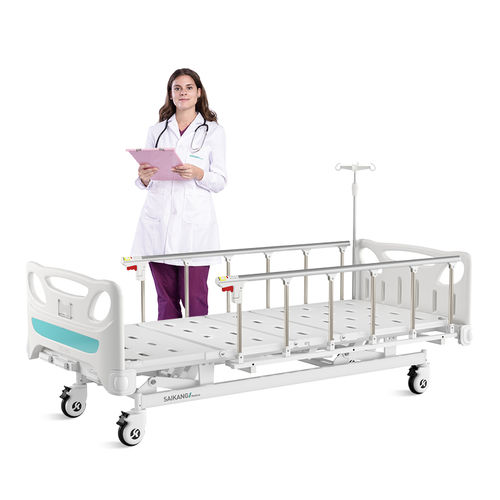

The K3k SK-CD1 is a three-crank manual hospital bed designed for general wards, recovery and surgical units. It provides manual adjustment of height, back-rest and knee-rest, with a safe working load of 200 kg, foldable side rails and 5" covered PR castors for controlled mobility and hygiene.

Key Features

• Three retractable hand cranks operate back-rest, knee-rest and height; durability rated for 100,000 cycles.
• Height adjustment range: 400–710 mm (±10 mm).
• Back-rest: 0–85° (±10°); Knee-rest: 0–45° (±10°).
• Safe working load (SWL): 200 kg.
• Platform: robot-welded, stamped forming surface with polished finish and no visible welding scars; load-rated to 200 kg.
• 5" covered castors in PR material; precision anti-winding shell without exposed screws; passed dynamic durability test (withstand 120 kg, run 30 km and pass 500 obstacles without deformation).
• Head and foot boards with integrated protective corners and 60 mm diameter bumper wheels; removable for cleaning and transport.
• Siderails: aluminium-alloy horizontal bars with 6 vertical stainless-steel posts and plastic grip; foldable side rail set supplied.
• IV pole: stainless-steel infusion pole with four plastic hooks, load capacity up to 15 kg.
• Accessories included: ABS drainage hooks (2), ABS mattress retainers (2), PP bed ends with safety lock.

Applications & Procurement Value

• New hospital projects — standardized manual bed for general wards, surgical wards and recovery areas.
• Ward renovation and bed replacement — manual height adjustment without electrical infrastructure modifications.
• Public procurement and tenders — mechanical reliability, defined positioning functions and predictable maintenance costs.
• Nursing-intensive units — adjustable working height to assist caregivers during bedside care, transfers and procedures.
• Private clinics and expansion projects — essential positioning functions without electrical-system acquisition and maintenance.
• Distributors and regional supply programs — standardized configuration for consolidated orders, spare parts planning and on-site demonstrations.

Included Configuration (standard)

• Manual cranks: 3 pcs (back-rest, knee-rest, height)
• 5" covered castors (PR): 4 pcs
• Foldable side rail: 1 set
• PP bed ends with safety lock: 1 set
• IV pole: 1 set (with 4 plastic hooks)
• Drainage hooks (ABS): 2 pcs
• ABS mattress retainers: 2 pcs

Technical specifications

• External size (L x W): 2160 x 980 mm
• Mattress platform: 1930 x 830 ±10 mm
• Safe working load: 200 kg
• Height adjustment: 400 - 710 mm
• Back-rest adjustment: 0 - 85° (±10°)
• Knee-rest adjustment: 0 - 45° (±10°)
• Manual cranks: 3 pcs
• Castors: 5" covered PR castors, 4 pcs
• Foldable siderail: 1 set (aluminium horizontal bars, 6 vertical stainless posts)
• IV pole capacity: up to 15 kg (4 plastic hooks)
• Drainage hooks: ABS, 2 pcs
• ABS mattress retainers: 2 pcs
