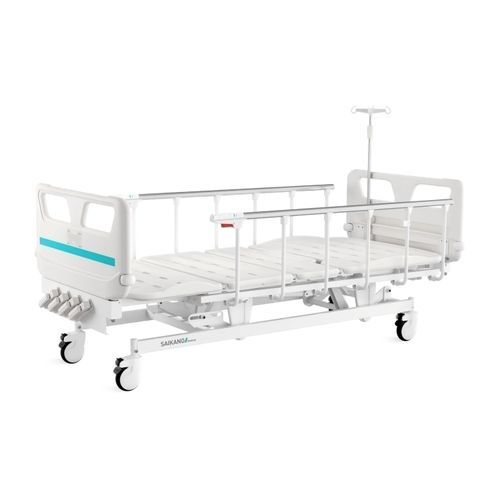

Hospital bed V4W

manualTrendelenburgreverse Trendelenburg

Overview
The V4W four-crank manual hospital bed provides five positioning functions (backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg) using a fully mechanical four-crank system. It is designed for robust ward use with an integrated PP bed platform, foldable L-shaped guardrails, hard-shell castors and standard bedside accessories. The bed supports clinical versatility without dependence on electric motors.

Highlights

• Integrated PP bed platform with advanced manufacturing technology; 4–5 section platform enabling independent installation and easy maintenance.
• Enlarged seat area when the back part is raised to increase patient comfort and reduce sponge depression at the seat panel.
• 5" hardshell castors with TPR tires (durability test: pass 40,000 obstacle cycles under 200 kg load); anti-winding hard shell cover, tool-free unified forming.
• LG Chem fresh PP head and foot boards, plug-in type; equipped with Φ65 bumper wheels to prevent collision.
• L-shaped foldable guardrail (patented) with ProErgo-Handle™: bended tube, solid installation, anti-pinch design, stable (no shaking).
• Horizontal corner wall-bumper wheels at the outer periphery to protect bed and walls.

Standard accessories / bed items

• 4 manual cranks (4 pcs)
• 5" hardshell castors (4 pcs)
• Foldable side rail with ProErgo-Handle™ (1 set)
• PP bed ends with safe lock and Φ65 bumper wheels (1 set)
• PP bed platform with integrated mattress retainer (1 set)
• IV pole 4 hooks (1 set) and IV pole provision (4 pcs)
• Drainage hooks (mobile plastic) (2 pcs)

Technical parameters (table)
External size (LxW): 2130x1020 mm
Mattress platform: 1925x900 mm
Safe working load: 200 kg
Height adjustment: 475-725 mm
Back-rest adjustment: 0-70° (±5°)
Knee-rest adjustment: 0-38° (±5°)
Trendelenburg: 0-12°
Reverse trendelenburg: 0-12°

Optional / Additional features

• Auto-regression (back section)
• Utility shelf
• Trapeze bracket / pole
• Color customization for headboards, footboards and ABS side rails available for bulk orders (MOQ conditions apply)

Typical procurement applications

• New hospital projects and general ward construction (standardized manual bed with extended positioning functions)
• Post-operative care and recovery wards (flexible patient positioning without motors)
• Nursing-intensive units where frequent bedside procedures and repositioning occur
• Government tenders and public procurement where documented dimensions and adjustment ranges are required
• Ward renovation and manual bed upgrade programs (retain existing room electrical layout)
• Multi-site procurement for hospital groups and distributors (standardized configuration simplifies technical evaluation and spare-part planning)

Technical specifications

• Model: V4W manual four-crank hospital bed
• External size (LxW): 2130 x 1020 mm
• Mattress platform size: 1925 x 900 mm
• Safe working load: 200 kg
• Height adjustment: 475–725 mm
• Back-rest: 0–70° (±5°)
• Knee-rest: 0–38° (±5°)
• Trendelenburg / Reverse Trendelenburg: 0–12°
• Manual cranks: 4 pcs
• Castors: 5" hardshell TPR castors, 4 pcs, anti-winding cover
• Guardrail: L-shaped foldable, anti-pinch, ProErgo-Handle™
• Platform: Integrated PP with mattress retainer (33 mm border at back and leg sections)
• IV pole: Stainless steel, bearing 15 kg (4-hook option)
• Drainage hooks: mobile plastic drainage hooks (2 pcs)
