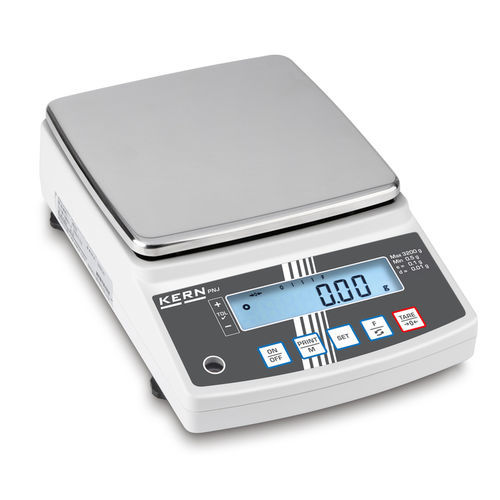

Electronic laboratory balance PNJ 3000-2M

precisionfor scientific researchfor dental laboratories

Description
The PNJ 3000-2M is a precision laboratory balance featuring a robust tuning-fork weighing system and automatic internal calibration. The automatic internal adjustment ensures high accuracy and location independence, making the balance suitable for conformity-assessment applications (NAWI). The tuning-fork principle provides fast weight display, precise dispensing and high mechanical resilience.

Key features

• Automatic internal adjustment for reliable accuracy
• Capacity display (bargraph) indicating remaining weighing range
• Precise piece counting with automatic reference-weight optimisation
• Compact footprint for space-constrained environments
• Large, shock-resistant stainless steel weighing pan
• Protective working cover included
• Standard RS-232 interface and multiple selectable units

Applications

• Chemistry laboratories
• Quality control departments
• Electronics and precision mechanics industry
• Laboratory applications
• Dental laboratories

Technical data (summary)
Weighing capacity [Max]: 3200 g
Weighing capacity [Max] (ct): 16000 ct
Readability [d]: 0,01 g
Readability carat [d] (ct): 0,1 ct
Verification scale interval [e]: 0,1 g
Units: g, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz, tol
Conformity assessment possible ex works: yes
Minimum weight [Min]: 0,5 g
Linearity: ± 0,02 g
Reproducibility: 0,01 g
Stabilization time: 3 s
Tolerance weighing: yes (visual signal)
Interfaces: RS-232 standard
Adjustment options: Internal calibration (automatic)
Ambient temperature: 5 °C – 40 °C
Dimensions weighing surface (W×D): 190×190 mm
Material housing: plastic
Dimension housing (W×D×H): 196×293×89 mm
Material weighing plate: stainless steel
Net weight approx.: 3,6 kg
Construction type of the scale: Single-range balance
GTIN/EAN number: 4045761179868

Characteristics / technical specifications

• Weighing capacity: 3200 g
• Readability: 0,01 g
• Verification scale interval: 0,1 g
• Minimum weight: 0,5 g
• Linearity: ± 0,02 g
• Reproducibility: 0,01 g
• Stabilization time: 3 s
• Weighing surface: 190 × 190 mm (stainless steel)
• Housing dimensions: 196 × 293 × 89 mm (plastic)
• Interfaces: RS-232
• Automatic internal adjustment (internal calibration)
• Net weight: approx. 3,6 kg
• GTIN / EAN: 4045761179868
