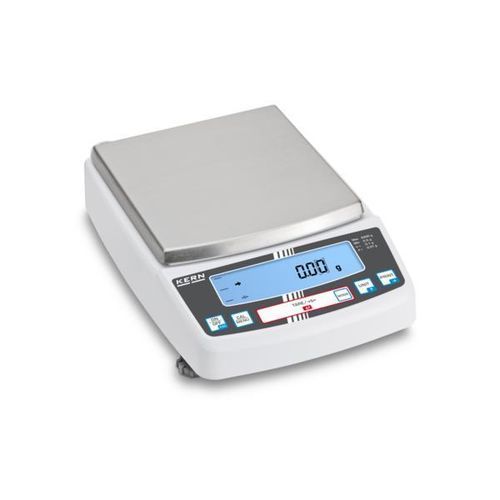

Electronic laboratory balance PBJ 2000-2M

precisionfor the pharmaceutical industryfor laboratory

Product description

• Internal adjustment: Temperature- and time-controlled internal calibration for high accuracy and independence from location of use.
• Metal housing: cast aluminium construction.
• Dosage aid: High stability mode and selectable filter settings for dosing operations.
• Weighing with tolerance range (checkweighing): Visual signal supports portioning, dispensing or grading; lower and upper limiting values programmable; input possible in grams, pieces or %.
• Summation of weight values: individual weighings can be added together to obtain a total.
• Identification number: 4 digits, printed on the calibration protocol, freely programmable.
• Automatic data output to PC/printer each time the balance is steady.
• Protective working cover included with delivery.

Applications

• Laboratory applications
• Pharmaceutical applications
• Quality control
• Time-based recording

Technical data (table)
Weighing capacity [Max]: 2200 g
Weighing capacity [Max] (ct): 11000 ct
Readability [d]: 0.01 g
Readability carat [d] (ct): 0.1 ct
Verification scale interval [e]: 0.1 g
Units: kg, g, mg, t, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, lb, oz, tl (Cn), PCS, %, D, mom
Conformity assessment possible ex works: yes
Minimum weight [Min]: 0.5 g
Linearity: ± 0.02 g
Reproducibility: 0.01 g
Stabilization time: 2.5 s
Tolerance weighing: yes (visual signal)
Interfaces: RS-232 standard - 2x
Adjustment options: Internal calibration (automatic)
Ambient temperature: 10 °C – 30 °C
Dimensions weighing surface (W×D): 176×189 mm
Material housing: cast aluminium
Dimension housing (W×D×H): 191×317×79 mm
Material weighing plate: stainless steel
Net weight approx.: 5.0 kg
Construction type of the scale: Single-range balance
GTIN/EAN number: 4045761492806

Available accessories (selected)

• Anti-vibration plates (e.g. KERN YPS-04, YPS-05)
• Antivibration table YPS-03
• Density determination set PBS-A03
• Printers: Dot Matrix YKG-01, Needle YKN-01 / YKT-01, Thermal YKC-01 / YKH-01
• Protective working cover PBS-A02 (also PBS-A02S05 set)
• RS-232 interface cables (e.g. 770-926, ACS-A01)
• RS232-Bluetooth adapter YKI-02
• RS232-Ethernet adapters YKI-10 / YKI-11
• RS232-WiFi adapter YKI-12

Technical specifications

• Model: PBJ 2000-2M
• Weighing capacity [Max]: 2200 g (11000 ct)
• Readability [d]: 0.01 g (carat: 0.1 ct)
• Verification scale interval [e]: 0.1 g
• Minimum weight [Min]: 0.5 g
• Linearity: ± 0.02 g
• Reproducibility: 0.01 g
• Stabilization time: 2.5 s
• Interfaces: 2× RS-232
• Adjustment: Automatic internal calibration
• Weighing surface (W×D): 176×189 mm
• Housing material: cast aluminium
• Weighing plate material: stainless steel
• Dimensions (W×D×H): 191×317×79 mm
• Net weight: approx. 5.0 kg
• Construction: Single-range balance
• Units supported: kg, g, mg, t, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, lb, oz, tl (Cn), PCS, %, D, mom
• GTIN/EAN: 4045761492806
