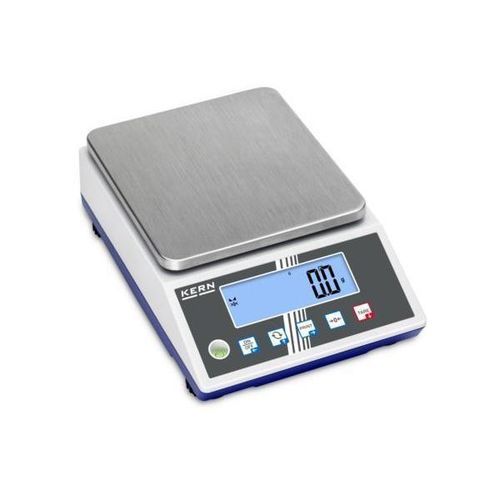

Electronic laboratory balance PCJ 6000-1M

digitalprecisionfor the pharmaceutical industry

Description

• Internal adjustment via a rotary control on the side ensures high accuracy and allows use at any location.
• Alibi memory for paperless, secure archiving of weighing results; legally relevant weighings can be stored and exported electronically.
• Operable and adjustable in battery mode without mains power.
• Consistent KERN operating concept: uniform design, menu structure, button functions and interface protocol across products.
• Extensive menu with configurable settings (button tones, assignable quick-access keys, adaptable print protocol).
• Menu lock prevents access by unauthorized personnel.
• Designed for connection to Laboratory Information Management Systems (LIMS) and integration into IT environments.
• GLP/ISO-compliant logging of weighing data, adjustments, etc., including date, time and identification number.
• Industry 4.0 capable: KERN Universal Port (KUP) supports external KUP adapters (RS-232, USB, Bluetooth, WiFi, Ethernet, etc.) for data exchange without installation effort.
• Remote data query and control via computer or CRM/ERP systems using the KERN Communication Protocol (KCP).
• Hook for suspended (underfloor) weighing supplied.
• Protective working cover supplied.

Applications

• Jewellery and gold trade
• Jewellers
• Quality control
• Laboratory applications
• Chemists
• Pharmaceutical industry

Technical Data (summary)
Weighing capacity [Max]: 6000 g
Readability [d]: 0.1 g
Verification scale interval [e]: 1 g
Units: kg, g, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz, ffa, m
Conformity assessment possible ex works: yes
Minimum weight [Min]: 5 g
Linearity: ± 0.3 g
Reproducibility: 0.1 g
Stabilization time: 3 s
Tolerance weighing: yes (acoustic, visual signal)
Interfaces: RS-232 (optional), Bluetooth (optional), Ethernet (optional), USB-Device (optional), KUP, WiFi (optional)
Adjustment options: internal weight (manual)
Ambient temperature: 15 °C – 35 °C
Dimensions weighing surface (W×D): 150×170 mm
Material housing: plastic
Dimension housing (W×D×H): 163×245×80 mm
Material weighing plate: stainless steel
Net weight approx.: 2.8 kg
Construction type of the scale: Single-range balance
GTIN/EAN number: 4045761215825


Characteristics / technical specifications

• Model: PCJ 6000-1M (single-range precision balance)
• Weighing capacity: 6000 g
• Readability: 0.1 g
• Verification scale interval (e): 1 g
• Minimum weight: 5 g
• Linearity: ± 0.3 g
• Reproducibility: 0.1 g
• Stabilization time: 3 s
• Weighing plate dimensions: 150 × 170 mm (stainless steel)
• Housing dimensions: 163 × 245 × 80 mm (plastic)
• Net weight: approx. 2.8 kg
• Interfaces (optional): RS-232, Bluetooth, Ethernet, USB-Device, WiFi; KUP supported
• Adjustment: internal weight (manual) / internal adjustment control
• Power: mains and battery operation (adjustable in battery operation)
• Features: alibi memory (secure archiving), GLP/ISO record keeping (date, time, ID), KERN Communication Protocol (KCP), tolerance weighing (acoustic/visual), piece counting, sum function
• Operating ambient temperature: 15 °C – 35 °C
