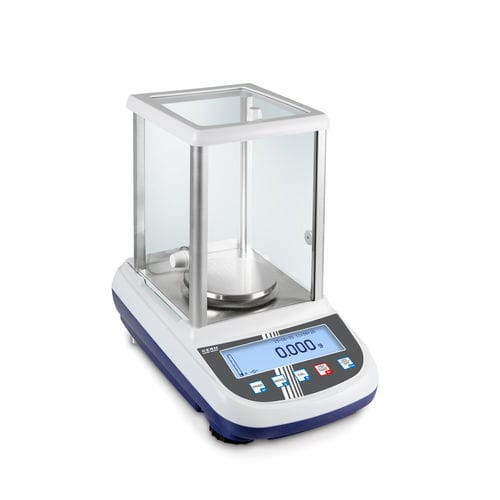

Electronic laboratory balance PLJ 2000-3A

digitalprecisiondosing

Product overview
The PLJ 2000-3A is a precision single-range laboratory balance with a maximum capacity of 2100 g and a readability of 0.001 g. It features a large glass draught shield for easy access to samples, a graphical display with multilingual operator guidance (DE, EN, FR, IT, ES, PT) and automatic internal calibration. Protective working cover included.

Key features

• Recipe weighing: database for up to 99 recipes, each with up to 20 ingredients (name + target value) and on-screen guidance.
• Internal memory for complete recipes and user prompts via the graphics display.
• Fast operation with a responsive graphic display and selectable filter settings.
• Dosage aid: high-stability mode and additional filter options to improve repeatability during dosing tasks.
• Tolerance / checkweighing with acoustic and visual signals.
• Automatic internal adjustment (internal calibration) ensures consistent accuracy independent of installation site.
• RS-232 interface for connection to printers or PCs; recommended adjustment weight: 2 kg (E2).

Applications

• Laboratory routine weighing
• Research and development
• Jewellery and precious metal testing
• Environmental analysis
• Electronics component weighing

Technical Data (summary)
Weighing capacity [Max]: 2100 g
Weighing capacity [Max] (ct): 10500 ct
Readability [d]: 0.001 g
Units: g, mg, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz
Linearity: ± 0.004 g
Reproducibility: 0.002 g
Stabilization time: 2 s
Tolerance weighing: yes (acoustic, visual)
Interfaces: RS-232 (standard)
Adjustment options: Internal calibration (automatic)
Recommended adjusting weight: 2 kg (E2)
Operating temperature: 15 °C – 35 °C
Weighing pan Ø: 110 mm (stainless steel)
Weighing space W×D×H: 160×170×225 mm
Material draught shield: glass
Material housing: plastic
Housing dimensions W×D×H: 210×340×330 mm
Net weight approx.: 7 kg
Construction type: Single-range balance
GTIN/EAN: 4045761243224

Specifications

• Model: PLJ 2000-3A
• Maximum capacity: 2100 g
• Readability / Division: 0.001 g
• Linearity: ± 0.004 g
• Reproducibility: 0.002 g
• Stabilization time: 2 s
• Selectable units and functions: multiple units, recipe memory, checkweighing, dosing aids
• Interface: RS-232
• Internal calibration: automatic (recommended adjustment weight 2 kg E2)
• Weighing pan Ø 110 mm (stainless steel), weighing chamber 160×170×225 mm
• Net weight ~7 kg
• GTIN/EAN: 4045761243224
