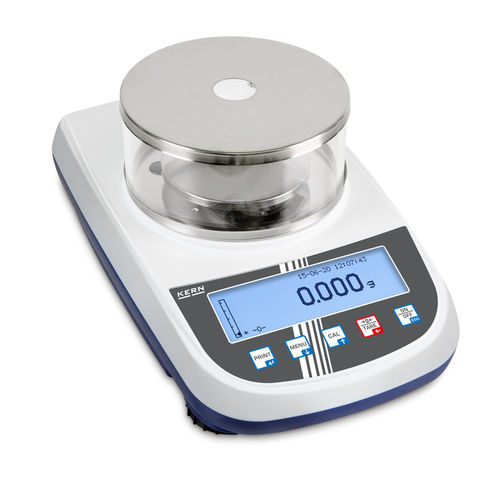

Digital laboratory balance PLJ 1200-3A

precisionfor scientific researchfor laboratory

Short description
Series of PLJ precision balances with high weighing capacity up to 1200 g (6000 ct), designed for heavy tare containers and large samples. Graphic display with multilingual user guidance; ring-shaped draught shield (weighing space Ø×H: 150×60 mm) and protective cover included.

Features

• Recipe weighing with database: up to 99 recipes, each up to 20 ingredients (name and target value)
• Internal memory for complete recipes and display-guided user prompts
• Fast, efficient operation via graphics display
• Dosage aid: high-stability mode and selectable filter settings
• Clear user interface languages: DE, EN, FR, IT, ES, PT
• Automatic internal calibration for reliable accuracy and location independence
• Standard ring-shaped draught shield (Ø×H 150×60 mm) and protective working cover
• Standard interfaces and functions: RS-232, GLP/ISO protocol generation, date/time display, piece counting, formulation/recipe memory, density and percentage determination, tolerance (checkweighing) with acoustic/visual signals, suspended (underfloor) weighing option
• Weighing principle: electromagnetic force compensation

Applications

• Laboratory use
• Research and development
• Jewellery and precious-metal testing
• Environmental analysis
• Electronics industry

Technical data

• Weighing capacity (Max): 1200 g (6000 ct)
• Readability: 0.001 g (0.01 ct)
• Units: g, mg, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz
• Linearity: ±0.003 g
• Reproducibility: 0.001 g
• Stabilization time: 2 s
• Tolerance weighing: acoustic and visual signal
• Interfaces: RS-232
• Adjustment: internal automatic calibration
• Operating temperature: 15 °C – 35 °C
• Weighing pan Ø: 110 mm
• Draught shield material: glass
• Housing material: plastic
• Housing dimensions (W×D×H): 210×340×120 mm
• Weighing plate: stainless steel
• Net weight approx.: 5.0 kg
• Construction type: single-range balance
• GTIN / EAN: 4045761243217
