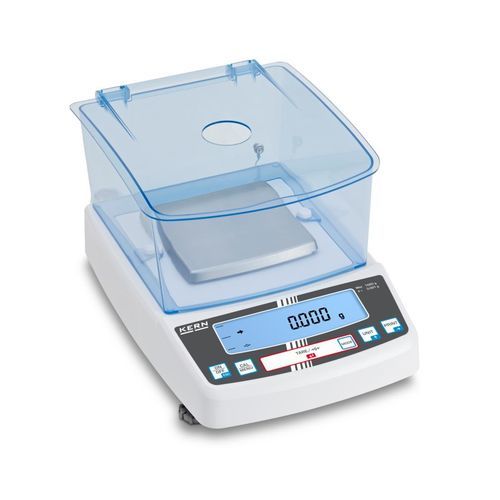

Electronic laboratory balance PBJ 1000-3

digitalprecisionfor the pharmaceutical industry

Short description
Multifunctional laboratory balance with Single-Cell weighing system and stainless steel weighing pan. Built-in internal calibration and protective cover included.

Features

• Internal automatic adjustment for temperature changes, time-controlled at defined intervals to maintain accuracy independent of location
• Metal housing for stable installation
• Dosage aid: high-stability mode and selectable filter settings
• Weighing with tolerance range (checkweighing): visual signal assists portioning, dispensing or grading
• Summation of weight values (net-total)
• Programmable 4-digit identification number printed on calibration protocol
• Automatic data output to PC/printer when the reading is steady (2× RS-232)
• Protective working cover included

Applications

• Laboratory applications
• Pharmaceutical applications
• Quality control
• Time-based recording

Technical data (table)
Weighing capacity [Max]: 1020 g
Readability [d]: 0.001 g
Units: kg, g, mg, t, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, lb, oz, tl (Cn), PCS, %, D, mom
Linearity: ± 0.003 g
Reproducibility: 0.001 g
Stabilization time: 2.5 s
Tolerance weighing: yes (visual signal)
Interfaces: RS-232 standard - 2×
Adjustment options: Internal calibration (automatic)
Ambient temperature: 5 °C – 40 °C
Dimensions weighing surface (W×D): 113×110 mm
Material draught shield: plastic
Material housing: cast aluminium
Dimension housing (W×D×H): 191×317×79 mm
Material weighing plate: stainless steel
Net weight approx.: 3.6 kg
Construction type of the scale: Single-range balance
GTIN/EAN number: 4045761492776

Characteristics / technical specifications

• Model: PBJ 1000-3
• Weighing capacity (Max): 1020 g
• Readability: 0.001 g
• Linearity: ± 0.003 g
• Reproducibility: 0.001 g
• Stabilization time: approx. 2.5 s
• Units supported: multiple (see list above)
• Functions: checkweighing (tolerance), dosing aid, net-total, piece counting, hold/averaging
• Interfaces: 2× RS-232 (automatic data output)
• Adjustment: automatic internal calibration
• Weighing surface: 113×110 mm; plate material: stainless steel
• Housing: cast aluminium; draught shield: plastic (transparent cover included)
• Operating temperature range: 5 °C – 40 °C
• Net weight: approx. 3.6 kg
• GTIN/EAN: 4045761492776
