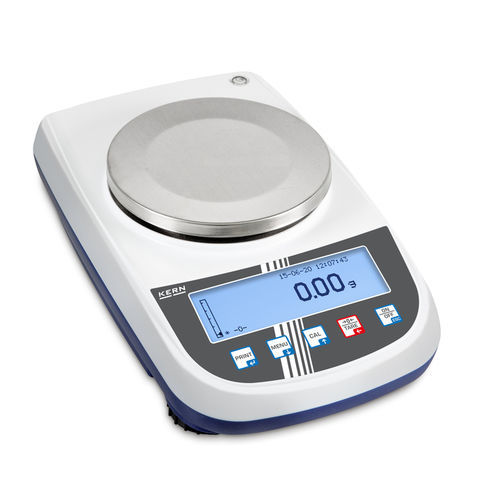

Precision laboratory balance PLJ 6200-2A

for laboratoryfor scientific researchbenchtop

Product overview
PLJ family precision balances offering a single-range capacity up to 6200 g with 0.01 g readability, designed for heavy tare containers and large samples.

Key features

• Recipe weighing with database: up to 99 recipes, each up to 20 ingredients with name and target value.
• Internal memory for complete recipes and guided user workflow on the graphic display.
• Graphic display for rapid, efficient operation.
• Dosage aid: high-stability mode and selectable filter settings.
• Clear, multilingual user interface (DE, EN, FR, IT, ES, PT).
• Automatic internal adjustment (internal calibration) for stable accuracy independent of location.
• Protective working cover supplied as standard.

Applications

• Laboratory weighing
• Research & development
• Jewellery and precious-metal testing
• Environmental analysis
• Electronics industry

Technical data (summary)
Weighing capacity [Max]: 6200 g
Weighing capacity [Max] (ct): 31000 ct
Readability [d]: 0.01 g
Units: g, mg, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz
Linearity: ± 0.05 g
Reproducibility: 0.01 g
Stabilization time: 3 s
Tolerance weighing: yes (acoustic, visual)
Interfaces: RS-232 standard
Adjustment options: Internal automatic calibration
Ambient temperature: 15 °C – 35 °C
Pan diameter (Ø): 160 mm
Housing material: plastic
Dimensions (W×D×H): 210×340×120 mm
Pan material: stainless steel
Net weight approx.: 5.0 kg
Construction type: Single-range balance
GTIN/EAN: 4045761243279

Standard functions / pictograms

• Internal adjustment (automatic)
• RS-232 data interface
• GLP/ISO protocol (GLP-compliant printout)
• Display of value, date and time
• Piece counting with selectable reference quantities
• Formulation / recipe memory with display-supported guidance
• Density determination for liquids and solids
• Percentage determination (deviation in % from target)
• Checkweighing (tolerance range) with acoustic and visual signals
• Suspended (underfloor) weighing with hook (optional)
• Universal plug-in power supply options
• Weighing principle: electromagnetic force compensation

Technical specifications

• Model: PLJ 6200-2A
• Capacity: 6200 g
• Readability: 0.01 g
• Pan diameter: 160 mm (stainless steel)
• Interface: RS-232 (standard)
• Adjustment: internal automatic calibration
• Recipe memory: up to 99 × 20 ingredients
• Display: graphic, multilingual (DE, EN, FR, IT, ES, PT)
• Stabilization time: 3 s
• Operating temperature: 15 °C – 35 °C
• Net weight: approx. 5.0 kg
• GTIN/EAN: 4045761243279
