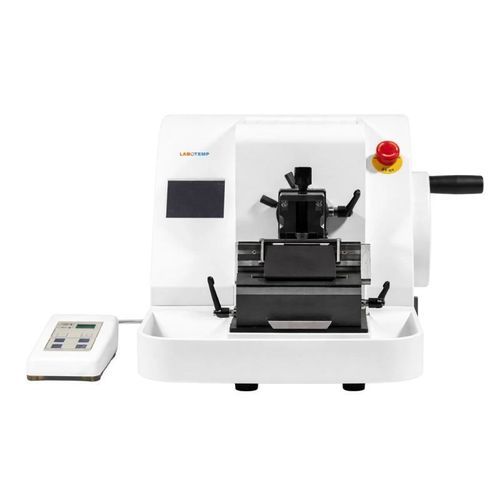

Rotary microtome ROM-01

fully automaticfor histologyfor research

Product overview
Labotemp Fully Automatic Rotary Microtome ROM-01 is a full-automatic rotary microtome designed for precise tissue sectioning in histopathology, diagnostic, and research laboratories. This advanced microtome produces consistent thin sections with an adjustable cut thickness from 0.5 µm to 100 µm, supporting reliable serial sectioning for routine histology and microscopy. The motorized specimen feed with high-accuracy control ensures smooth operation and repeatable results during sample preparation. A stable microtome blade holder supports standard disposable microtome blades and steel knives, maintaining uniform contact at the cutting edge for clean sectioning. Automated specimen retraction, programmable cutting speeds, and remote control operation improve workflow efficiency and operator comfort. Designed for laboratories requiring dependable quality sections, the ROM-01 combines automation, precision, and stability for daily microtomy.

Key benefits

• Uniform section thickness: Full automation supports cuts up to 100 µm
• Stable blade performance: Improved alignment reduces section artifacts
• Efficient workflow: Automated trimming and sectioning save time

Features

• Germany stepper motor for precise and quiet operation
• Full-automatic rotary microtome operation
• Adjustable section thickness from 0.5–100 µm
• Automatic specimen retraction
• Remote control panel for convenient control
• Precise specimen clamp orientation
• 360° specimen orientation along the X-Y axis
• Forward and reverse specimen feed
• Adjustable cutting speed for flexible sectioning
• Ergonomic design for smooth and stable cutting
• Supports standard disposable microtome blades and steel knives
• Consistent sectioning for routine histology and microscopy

Applications

• Histopathology Sectioning: Produces thin tissue sections for routine histopathological examination and microscopic analysis
• Medical Pathology: Supports preparation of tissue specimens for diagnostic laboratory workflows
• Diagnostic Laboratories: Provides controlled sectioning for microscopic examination and tissue evaluation
• Research Laboratories: Suitable for preparing tissue samples for biological and biomedical research
• Academic Laboratories: Supports practical training and research involving tissue preparation and microscopy
• Tissue Sample Preparation: Produces consistent thin sections for staining, imaging, and microscopic examination

Specifications
General Specifications:
Section Thickness Range: 0.5–100 µm
Section Thickness Setting: 0.5–2 µm in 0.5 µm increment; 2–10 µm in 1 µm increment; 10–20 µm in 2 µm increment; 20–50 µm in 5 µm increment; 50–100 µm in 10 µm increment
Trimming Section Thickness Range: 5–500 µm (600 / 999 µm is optional customization)
Horizontal Specimen Stroke: 20 mm (28 mm is optional customization)
Vertical Specimen Stroke: 60 mm (70 mm is optional customization)
Sample Orientation: 8° along the X-Y axis, rotate 360°
Precision Error: ±5%
Maximum Section Size: 50 × 45 mm
Cutting Speed: 0–300 mm/s (0–400 or 500 mm/s is optional customization)
Specimen Feed Speed: 1250 µm/s (click), 2000 µm/s (keep pressing), forward and reverse
Voltage and Power: 220 V / 50 Hz or 110 V / 60 Hz

Operation & Control:
Operation: Full-automatic
Drive System: Germany stepper motor
Specimen Retraction: Automatic
Control: Remote control panel
Specimen Orientation: Precise specimen clamp orientation
Cutting System: Motorized precision cutting

Physical Dimensions:
Dimensions incl. Tray (L × W × H): 500 × 320 × 500 mm
Net Weight: 35 kg
Gross Weight: 49 kg
Package Size (L × W × H): 700 × 490 × 480 mm

Characteristics / Technical specifications

• Model: ROM-01
• Brand: Labotemp
• Operation mode: Full-automatic rotary microtome
• Section thickness range: 0.5–100 µm
• Thickness setting increments: 0.5 µm (0.5–2 µm), 1 µm (2–10 µm), 2 µm (10–20 µm), 5 µm (20–50 µm), 10 µm (50–100 µm)
• Trimming range: 5–500 µm (optional 600 / 999 µm)
• Specimen horizontal stroke: 20 mm (optional 28 mm)
• Specimen vertical stroke: 60 mm (optional 70 mm)
• Sample orientation: 8° on X-Y axis with 360° rotation
• Precision error: ±5%
• Maximum section size: 50 × 45 mm
• Cutting speed: 0–300 mm/s (optional up to 400/500 mm/s)
• Specimen feed speed: 1250 µm/s (click), 2000 µm/s (continuous), forward & reverse
• Drive: Germany stepper motor
• Specimen retraction: Automatic
• Control interface: Remote control panel
• Power: 220 V / 50 Hz or 110 V / 60 Hz
• Dimensions (incl. tray): 500 × 320 × 500 mm
• Net weight: 35 kg; Gross weight: 49 kg
• Package dimensions: 700 × 490 × 480 mm
