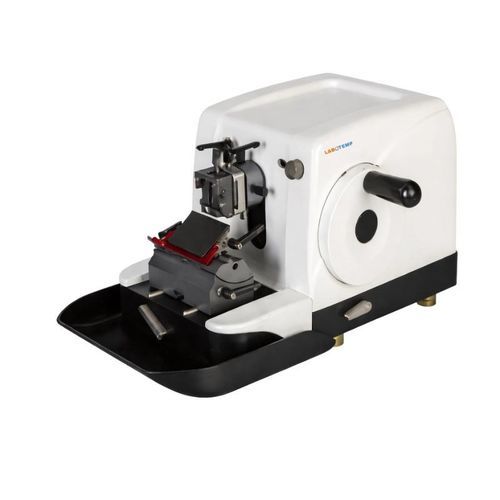

Rotary microtome ROM-04

manualfor histologyfor research

Product Overview
Labotemp Manual Rotary Microtome ROM-04 is a hand-operated rotary microtome for routine tissue sectioning in histopathology, diagnostic and teaching laboratories. It provides controlled manual sectioning with an adjustable thickness range of 0.5–60 µm and a secure blade holder suitable for paraffin‑embedded specimens.

Key Benefits

• Precise thickness control for reproducible serial sections.
• Stable specimen movement and low vibration for accurate cuts.
• Secure lateral blade adjustment for consistent sectioning.
• Removable wide waste tray for easy cleaning and maintenance.
• Handwheel drive with dual locking for safe manual operation.

Features

• Manual rotary mechanism driven by handwheel (no motor).
• Adjustable section thickness: 0–60 µm (alternate listing 0.5–60 µm); fine settings as specified below.
• Section thickness setting: 0–2 µm in 0.5 µm increments; 2–10 µm in 1 µm increments; 10–20 µm in 2 µm increments; 20–60 µm in 5 µm increments.
• Horizontal specimen stroke: 0–28 mm; Vertical specimen stroke: 52 mm.
• ±1% precision error for consistent sectioning.
• 360° specimen rotation with 8° X–Y orientation adjustment.
• Maximum section size: 60 × 55 mm.
• Fine trimming control combined with a coarse feed wheel.

Applications

• Histopathology sectioning
  Routine preparation of paraffin-embedded tissue sections for histological examination.
• Pathology and diagnostic labs
  Supports manual sectioning workflows in diagnostic and clinical pathology.
• Medical & research laboratories
  Specimen preparation for microscopy in research and clinical studies.
• Educational labs
  Suitable for teaching histology and hands-on training.
• Tissue sample preparation
  Produces controlled sections for staining and light microscopy.

Specifications (summary)
Section thickness range: 0.5–60 µm
Alternate listed adjustable cut thickness: 0–60 µm
Section thickness setting: 0–2 µm (0.5 µm steps); 2–10 µm (1 µm steps); 10–20 µm (2 µm steps); 20–60 µm (5 µm steps)
Horizontal specimen stroke: 0–28 mm
Vertical specimen stroke: 52 mm
Precision error: ±1%
Sample orientation: 8° X–Y, rotatable 360°
Maximum section size: 60 × 55 mm
Dimensions incl. tray (L × W × H): 565 × 440 × 285 mm
Net weight: 34 kg
Gross weight: 52 kg
Package size (L × W × H): 620 × 560 × 520 mm

Technical specifications

• Model: ROM-04
• Brand: Labotemp
• Method: Manual rotary microtome
• Cutting/section thickness range: 0.5–60 µm (alternate listing 0–60 µm)
• Section thickness control: 0–2 µm (0.5 µm increments); 2–10 µm (1 µm); 10–20 µm (2 µm); 20–60 µm (5 µm)
• Horizontal stroke: 0–28 mm
• Vertical stroke: 52 mm
• Max section size: 60 × 55 mm
• Specimen orientation: 8° X–Y, 360° rotation
• Precision error: ±1%
• Blade holder: lateral adjustment
• Waste tray: wide, removable
• Handwheel: manual with dual locks
• Dimensions (incl. tray): 565 × 440 × 285 mm
• Net weight: 34 kg; Gross weight: 52 kg
