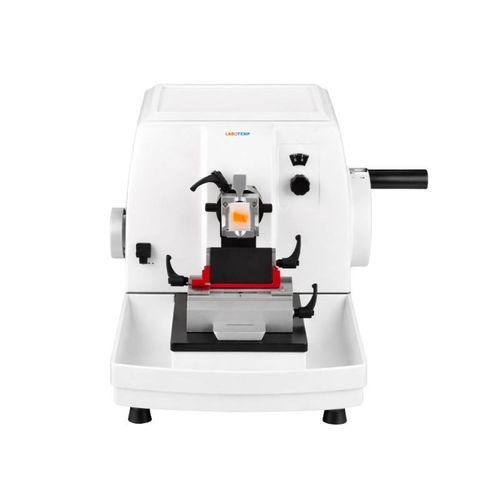

Rotary microtome ROM-05

manualfor histologyfor research

Overview
Labotemp Rotary Microtome ROM-05 is a precision manual rotary microtome designed for controlled tissue sectioning in histopathology, diagnostic and research laboratories. The unit provides an adjustable section thickness range of 0–60 µm with a minimum setting of 1 µm, enabling accurate serial sections for routine histology and light microscopy. A screw-feed mechanism combined with imported cross-roller guide rails ensures stable, repeatable sectioning. Specimen handling supports up to 60×50 mm blocks with 28 mm horizontal feed and 70 mm vertical feed. The rigid blade holder is available in high- or low-profile options to fit standard disposable microtome blades.

Why choose ROM-05

• Precise thickness control: adjustable 0–60 µm range with 1 µm minimum setting
• Stable specimen movement: 28 mm horizontal and 70 mm vertical feed
• Optional specimen retraction: 90 µm to reduce blade contact during return stroke
• Manual screw-feed drive and cross-roller guides for consistent, repeatable cuts

Features

• 1 µm sectioning precision
• Imported cross-roller guide rails with screw motion
• Stable mechanical structure with high-precision components
• Handwheel with mechanical balance and position lock
• Rigid blade holder covering full blade length for operator safety
• Magnetic large waste tray for quick installation and removal
• Quick switching between specimen clamps

Applications

• Routine histopathology sectioning in pathology laboratories
• Clinical and diagnostic laboratories
• Biomedical research institutions
• Teaching and training laboratories for paraffin-embedded tissue preparation

Specifications
Section thickness setting range: 0–60 µm; 0–20 µm increment 1 µm; 20–60 µm increment 5 µm
Trimming thickness setting range: 0–60 µm
Minimum section thickness setting: 1 µm
Precision and error: ±1%
Specimen retraction: 90 µm (optional)
Maximum specimen size: 60×50 mm
Specimen horizontal feeding: 28 mm
Specimen vertical feeding: 70 mm
Specimen orientation system: XY-8°
Size (W×D×H): 590×500×330 mm
Net weight: 36 kg
Gross weight: 54 kg

Technical specifications

• Model designation: ROM-05
• Section thickness setting range: 0–60 µm (0–20 µm increment 1 µm; 20–60 µm increment 5 µm)
• Trimming thickness setting range: 0–60 µm
• Minimum section thickness setting: 1 µm
• Precision and error: ±1%
• Specimen retraction (optional): 90 µm
• Maximum specimen size: 60×50 mm
• Specimen horizontal feed: 28 mm
• Specimen vertical feed: 70 mm
• Specimen orientation: XY-8°
• Size (W×D×H): 590×500×330 mm
• Net weight: 36 kg
• Gross weight: 54 kg
• Blade holder: rigid, high- or low-profile options for standard disposable blades
• Waste tray: magnetic large waste tray for easy installation/removal
