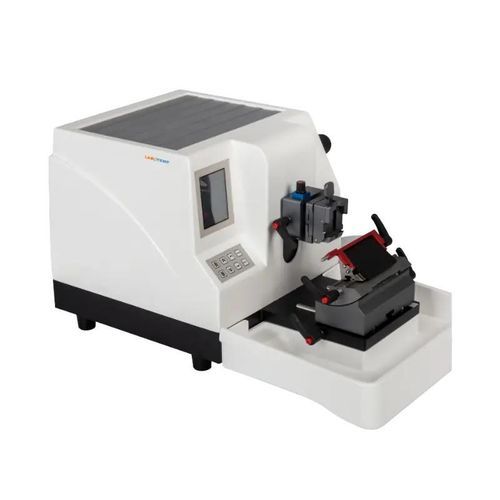

Rotary microtome ROM-06

semi-automaticfor histologyfor research

Product Overview
Labotemp Semi-automatic Rotary Microtome ROM-06 is designed for reproducible tissue sectioning in histopathology, diagnostic and research laboratories. It combines manual handwheel control with motorized specimen feed, enables adjustable section thickness from 0–99.9 µm (0.1 µm step), supports 360° specimen rotation and accepts standard disposable microtome blades and steel knives.

Key Capabilities

• Precise section thickness setting and trimming with 0.1 µm increment
• Motorized specimen feed with manual override for serial sections
• Automated specimen retraction and adjustable fast/slow feed modes
• 360° clamp rotation and X-Y orientation for accurate positioning

Features

• High-definition color touchscreen with advanced control panel
• Semi-automatic operation with high-precision controller
• Manual handwheel with independent locking system
• Stable blade holder compatible with disposable blades and steel knives (high/low profile optional)
• Robust, laboratory-grade housing for easy cleaning

Applications

• Histopathology routine and advanced sectioning
• Pathology and diagnostic laboratories
• Medical and clinical laboratories for microscopic analysis
• Biomedical research and academic laboratories
• Preparation of tissue samples for staining and evaluation

Technical Specifications

• Section thickness: 0–99.9 µm (0.1 µm increment)
• Trimming thickness: 0–999 µm (0.1 µm increment)
• Specimen retraction: 0–100 µm
• Precision / error: ±1%
• Fast feed speed: 1–3.5 mm/s
• Slow feed speed: 0.1–1 mm/s
• Maximum specimen size: 60 × 50 mm
• Horizontal feed: 28 mm; Vertical stroke: 60 mm
• Clamp rotation: 360°; Orientation system: X-Y 8°
• Voltage / Frequency: AC 220 V / 50 Hz

Operation
Method: Semi-automatic with motorized feed and manual handwheel control. Control: advanced control panel and high-definition touchscreen. Options: paraffin block clamp or cassette clamp, high- or low-profile blade holder.

Physical Dimensions
Size (W × D × H): 580 × 490 × 315 mm
Net weight: 30 kg; Gross weight: 45 kg
