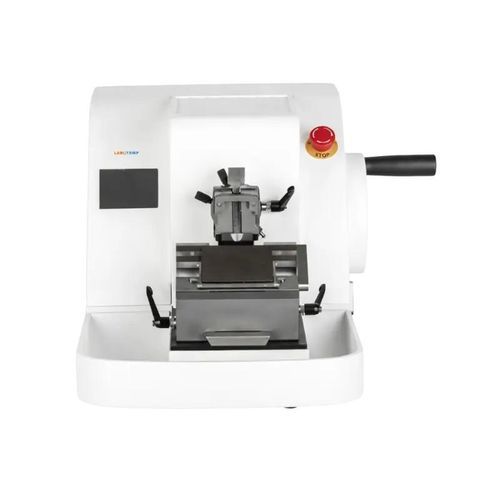

Rotary microtome ROM-07

semi-automaticfor histologyfor research

Product Overview
Labotemp Semi-automatic Rotary Microtome ROM-07 is a precision instrument for controlled tissue sectioning in histopathology, medical diagnostics and biomedical research. It combines electronic control with manual operation to produce reproducible sections across a wide thickness range (0.5–100 µm). An intelligent drive and OLED display enable accurate adjustment of sectioning and trimming parameters for routine and specialized workflows.

Key Advantages

• Wide thickness range: precise sectioning from 0.5–100 µm
• Full specimen control: 360° clamp rotation and stable horizontal/vertical stroke
• Improved section quality: secure blade clamping and smooth guide-rail motion

Main Features

• Emergency braking system with alarm and over-current protection
• Semi-automatic operation with dedicated sectioning and trimming modes
• OLED screen showing section thickness, trimming thickness and section count
• Intelligent drive system for consistent feed speed and control
• Imported cross-roller guide rails with screw motion for high precision
• Ergonomic design and stable cutting performance
• Quick switching between paraffin block clamp and cassette clamp
• Selectable horizontal stroke (20 mm standard, 28 mm optional) and vertical stroke (60 mm standard, 70 mm optional)

Applications

• Histopathology Sectioning
  Routine preparation of paraffin-embedded tissue sections for histological staining and microscopy
• Pathology Laboratories
  Consistent sectioning for diagnostic workflows and slide preparation
• Medical & Diagnostic Laboratories
  Controlled specimen preparation for microscopic examination and analysis
• Research Institutions
  Biomedical and tissue morphology research requiring reproducible thin sections
• Teaching Laboratories
  Practical histology training and specimen preparation in medical and academic programs

Specifications

• Section thickness range: 0.5–100 µm
• Setting increments: 0.5–2 µm (0.5 µm step); 2–10 µm (1 µm step); 10–20 µm (2 µm step); 20–50 µm (5 µm step); 50–100 µm (10 µm step)
• Trimming range: 5–500 µm (600 µm optional); multiple increments as specified
• Horizontal specimen stroke: 20 mm (28 mm optional)
• Vertical specimen stroke: 60 mm (70 mm optional)
• Specimen retraction: 12 µm (customizable 0–220 µm)
• Precision error: ±5%
• Maximum section size: 50 × 45 mm
• Specimen clamp rotation: continuous 360°
• Specimen orientation: X-Y 8°
• Specimen feed speed: 1250 µm/s (single click), 2000 µm/s (continuous)
• Power supply: AC 110–220 V, 50/60 Hz
• Operation: Semi-automatic with intelligent drive and trimming modes
• Display: OLED showing section thickness, trimming thickness and section count
• Guide rail system: imported cross-roller guide rails with screw motion
• Safety: emergency braking with alarm and over-current protection
• Clamp switching: fast switch between paraffin block clamp and cassette clamp
• Dimensions (W×D×H): 520 × 450 × 300 mm; Net weight: 34 kg; Gross weight: 50 kg; Package: 700 × 520 × 520 mm
