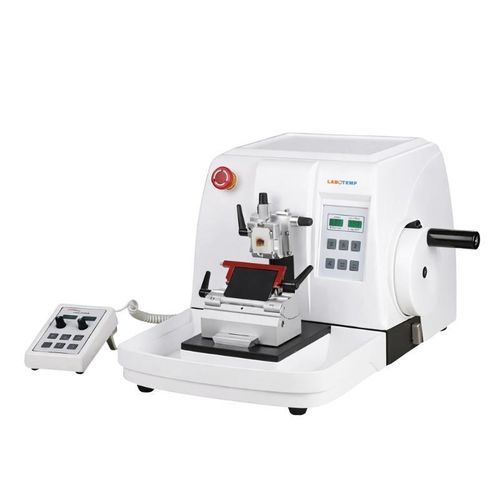

Rotary microtome ROM-02

fully automaticfor histologyfor research

Product overview
Labotemp Lab ROM-02 is a fully automatic rotary microtome engineered for precise tissue sectioning in histopathology, diagnostic and research laboratories. It delivers uniform thin sections across an adjustable range of 0.25–100 µm with motor-driven specimen feed and a rigid blade holder compatible with disposable and steel blades. Automated retraction, programmable cutting modes and safety interlocks reduce operator handling and support reproducible serial sectioning for routine histology and advanced microscopy.

Key benefits

• Consistent section quality: programmable automation maintains uniform thickness across runs.
• Reliable blade handling: rigid holder and quick-change clamps ensure stable blade contact for clean cuts.
• Optimised workflow: multi-mode operation and quick clamp changes increase throughput and traceability.
• Operator safety: integrated retraction, emergency brake and protective features minimise manual exposure.

Features

• Full-automatic operation with manual override.
• Intelligent control supporting manual or automatic sectioning and programmable sequences.
• Multi-function drive for sectioning, trimming and fast positioning movements.
• Continuously adjustable cutting speed and digital display for thickness, count and speed.
• Quick-change paraffin block and cassette clamps; lockable, balanced hand wheel.
• Remote control panel and external control interface.

Applications

• Histopathology sectioning
  Routine preparation of thin tissue sections for staining and microscopic analysis.
• Pathology & diagnostic labs
  Consistent sectioning for diagnostic workflows and slide preparation.
• Medical & clinical research
  Preparation of specimens for advanced microscopy and quantitative analysis.
• Academic laboratories
  Teaching, training and research requiring reproducible sectioning performance.
• Clinical research
  Controlled serial sectioning for studies and protocol-driven sample preparation.

Standard accessories

• External control panel.
• Standard specimen clamp.
• Universal specimen clamp.

Optional accessories

• High-profile blades – 10 boxes.
• Low-profile blades – 10 boxes.
• Foot switch.

Technical specifications

• Section thickness setting range: 0.25–100 µm (detailed increments: 0.25 µm from 0.25–2.5 µm; 0.5 µm 2.5–5 µm; 1 µm 5–10 µm; 2 µm 10–30 µm; 5 µm 30–60 µm; 10 µm 60–100 µm).
• Minimum section thickness: 0.25 µm.
• Trimming thickness range: 1–60 µm (detailed steps: 1 µm 1–10 µm; 2 µm 10–20 µm; 5 µm 20–50 µm; 10 µm 50–100 µm).
• Specimen retraction: 0–50 µm (0 = off); optional ranges available.
• Precision / error: ±1%.
• Maximum specimen size: 70 × 70 mm; horizontal feed 25 mm; vertical feed 70 mm.
• Specimen clamp rotation: 360°; specimen holder base travel: 65 mm (front–back); orientation system: X–Y 8°.
• Feed speed adjustment: 1500–3500 µm/s (continuously adjustable).
• Voltage / frequency: AC 220 V ±10% 50 Hz / 110 V 60 Hz (standard). Power: 150 W.
• Dimensions (W × D × H): 580 × 475 × 340 mm. Net weight: 33 kg. Gross weight: 49 kg. Package size: 690 × 590 × 500 mm.
