Platelet laboratory incubator LPA-101

forced aircompacthorizontal

Overview

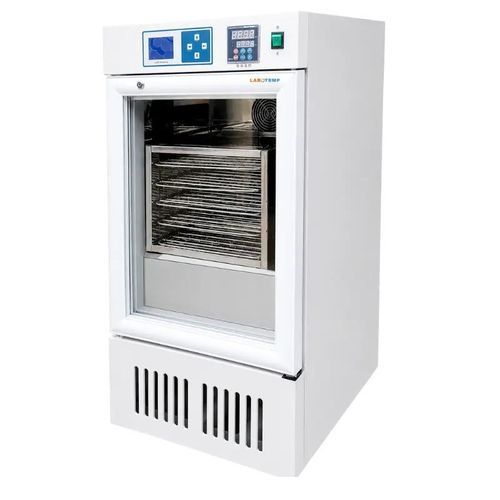

Labotemp Platelet Incubator with Agitator LPA-101 is a compact blood-bank platelet storage and agitation system designed for hospitals, blood banks and clinical laboratories. Engineered to maintain controlled storage conditions for platelet concentrates (recommended 20°C–24°C) within an operational temperature control range of 15°C–35°C, the unit helps preserve platelet viability during pre-transfusion storage. The integrated horizontal agitator delivers continuous motion up to 60 RPM with a 50 mm amplitude to minimize platelet aggregation and maintain a uniform suspension. The 5-layer storage layout supports approximately 5–10 platelet bags, making the LPA-101 suited to small laboratories, diagnostic centres and low-volume transfusion units.

Design and operation
The incubator uses a PID microcomputer temperature controller with a dual LCD display for simultaneous setpoint and actual temperature monitoring, providing temperature accuracy of ±1°C. A forced-air circulation system ensures uniform temperature distribution across the chamber while the mirror-finish stainless steel interior enables easy cleaning and corrosion resistance. Built-in UV sterilization, automatic defrosting, high/low temperature alarms with abnormal-shutdown protection, a fresh-air exchange port, polyurethane foam insulation and a low-noise refrigeration compressor complete the unit for reliable laboratory operation.

Key benefits

• Compact 5-layer configuration ideal for small blood banks and clinical laboratories
• Continuous horizontal agitation (up to 60 RPM, 50 mm amplitude) to reduce platelet aggregation and ensure homogeneous suspension
• Integrated UV sterilization and alarm protections to support safe, hygienic storage

Features

• UV sterilization
• Operates within a 15°C–35°C control range (recommended storage 20°C–24°C)
• Horizontal oscillation mechanism with adjustable speed up to 60 RPM
• 50 mm shaking amplitude for continuous, uniform platelet agitation
• PID microcomputer temperature control for precise regulation
• Dual LCD display for set and actual temperature
• Forced-air circulation for uniform chamber temperature distribution
• High and low temperature alarms with abnormal shutdown protection
• Automatic defrost system
• Mirror-finish stainless steel chamber for corrosion resistance and easy cleaning
• Large transparent observation window
• Polyurethane foam insulation
• Low-noise refrigeration compressor
• Fresh air exchange port

Applications

• Blood banks: controlled storage and preservation of platelet concentrates before transfusion
• Hospital transfusion units: supports platelet handling and temporary storage in transfusion services
• Clinical laboratories: provides controlled platelet preservation for laboratory workflows
• Diagnostic centres: reliable platelet storage prior to transfusion or further processing
• Platelet preservation: continuous agitation and controlled temperature to maintain suspension and reduce aggregation

Technical specifications

• Power supply: AC 220 V, 50 Hz
• Bag capacity: 5–10 bags
• Internal volume: 15 L
• Temperature control range: 15 to 35°C
• Recommended storage temperature: 20 to 24°C
• Temperature control accuracy: ±1°C
• Temperature fluctuation: ±1°C
• Temperature control mode: PID microcomputer
• Shaking mode: horizontal
• Speed range: 0 to 60 RPM
• Shaking amplitude: 50 mm
• Number of layers: 5
• Cooling power: 130 W
• Heating power: 300 W
• Chamber material: mirror-finish stainless steel
• Observation window: large transparent window
• Air circulation: forced-air
• Sterilization: UV
• Defrost system: automatic
• Compressor: low-noise refrigeration compressor
• Fresh air exchange: fresh air port
• Package size (W × D × H): 600 × 650 × 1160 mm
• Storage area dimensions (W × D × H): 300 × 300 × 230 mm
• Gross weight: 95 kg
