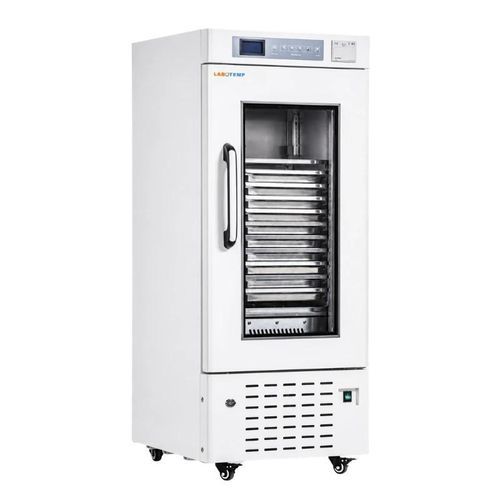

Forced air laboratory incubator LPA-107

for plateletsfor hospitalsfor healthcare facilities

Product description
Labotemp Platelet Incubator with Agitator LPA-107 provides controlled storage for platelet concentrates at 20–24°C with ±0.1°C accuracy. The unit integrates a programmable platelet agitator with 10 oscillating trays to hold up to 20 blood bags (450 mL). Forced-air, frost-free cooling and uniform chamber circulation preserve platelet quality for transfusion and laboratory use.

Design & operation
Built for continuous clinical operation, the LPA-107 features a stainless steel chamber and SPCC powder-coated exterior for easy cleaning and corrosion resistance. Operation is managed by a microprocessor controller with digital display, integrated UV light, built-in thermal printer for record-keeping, and a 72-hour power-failure backup. Safety functions include high/low temperature alarms, power-failure alarm, sensor-fault alarm, door-ajar alarm and a lockable door to protect platelet inventories.

Key features

• Temperature accuracy: ±0.1°C
• Frost-free forced-air cooling
• Microprocessor-based temperature controller with digital display
• Integrated oscillation system: 60 ± 5 cycles/min, 50 ± 10 mm amplitude
• Capacity: 20 blood bags (450 mL) on 10 oscillating trays
• Built-in thermal printer for temperature documentation
• Built-in UV light for hygienic storage
• Alarms: high/low temperature, power failure, sensor error, door ajar
• 72-hour power-failure backup
• Stainless steel interior; SPCC powder-coated exterior; universal caster wheels

Applications

• Blood banks: Controlled temperature storage with continuous agitation to preserve platelet concentrates prior to transfusion
• Hospitals & transfusion centers: Reliable storage for routine transfusion services and emergency platelet supply
• Clinical & diagnostic laboratories: Stable storage conditions for platelet products used in testing and diagnostics
• Biomedical research institutes: Standardized storage for hematology and transfusion research
• Medical universities & training centers: Educational and research use for platelet preservation techniques
• Quality-control & regulated facilities: Traceable storage with alarms, thermal printing and power-failure backup for compliance

Specifications
Performance & Temperature
Cooling method: Forced-air cooling
Defrost: Frost-free
Power-failure backup: 72 h
Temperature range: 20–24°C
Ambient range: 10–32°C
Noise level: 50 dB
Controller: Microprocessor
Sensor: NTC
Display: Digital display

Storage capacity & safety
Blood bag capacity: 20 blood bags (450 mL) / 10 trays
Thermal printer: Yes
Oscillation amplitude: 50 ± 10 mm
Oscillation frequency: 60 ± 5 cycles/min
Refrigerant: R134a
Exterior: SPCC sprayed steel
Interior: Stainless steel

Electrical & physical
Power supply: AC 220 V, 50/60 Hz or AC 110 V, 60 Hz
Power consumption: 280 W
Current: 1.27 A
Energy consumption: 4.4 kWh/24 h
Internal dims (W×D×H): 432 × 462 × 728 mm
External dims (W×D×H): 520 × 340 × 1290 mm
Net weight: 85 kg; Gross weight: 120 kg; Package size: 605 × 720 × 1480 mm

Technical specifications

• Model: LPA-107
• Temperature control range: 20–24°C
• Temperature accuracy: ±0.1°C
• Controller: Microprocessor
• Sensor type: NTC
• Display: Digital
• Cooling method: Forced-air (frost-free)
• Oscillation frequency: 60 ± 5 cycles/min
• Oscillation amplitude: 50 ± 10 mm
• Blood bag capacity: 20 bags (450 mL), 10 trays
• Thermal printer: integrated
• UV sterilization: built-in
• Alarms: high/low temperature, power failure, sensor fault, door ajar
• Power-failure backup: 72 hours
• Refrigerant: R134a
• Exterior: SPCC sprayed steel; Interior: Stainless steel
• Power supply: AC 220 V 50/60 Hz or AC 110 V 60 Hz
• Power consumption: 280 W; Current: 1.27 A; Energy: 4.4 kWh/24 h
• Internal dims (W×D×H): 432 × 462 × 728 mm; External dims (W×D×H): 520 × 340 × 1290 mm
• Net weight: 85 kg; Gross weight: 120 kg; Package size: 605 × 720 × 1480 mm
