Platelet laboratory shaker LPA-103

rotaryoscillatingdigital

Product Overview

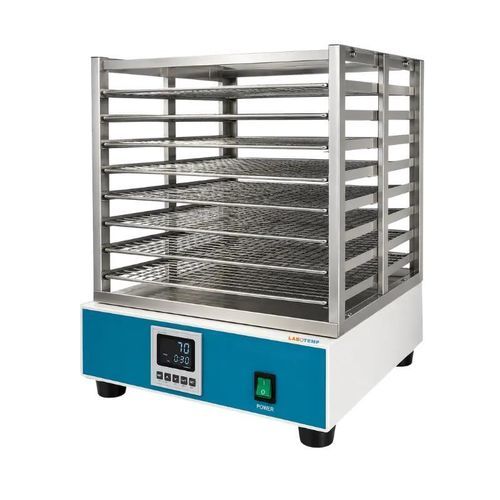

The LPA-103 platelet incubator with agitator integrates controlled short-term platelet storage and continuous agitation for blood banks, transfusion centres, hospitals and clinical laboratories. The benchtop system accepts up to 48 bags on an 8-layer stainless steel platform and maintains uniform platelet suspension to support platelet concentrate handling prior to transfusion.

Design and Operation
The unit delivers stable rotary agitation at 50–70 RPM with 20 mm amplitude. Programmable timing supports cycles up to 9,999 minutes or continuous operation. The truss-style stainless steel platform promotes consistent airflow and uniform movement across all levels, reducing platelet aggregation and supporting effective gas exchange.

Key Benefits

• Uniform platelet suspension via 50–70 RPM oscillation to help preserve viability
• Stainless steel platform and rack for corrosion resistance and easy cleaning
• Programmable continuous or timed operation (up to 9,999 minutes) to match workflow needs

Features

• 48-bag capacity on an 8-layer stainless steel platform
• Compact benchtop footprint for space-limited laboratories
• Truss-frame platform for improved stability and airflow
• Even bag positioning across all levels
• Quiet, smooth operation to minimise laboratory disturbance
• Digital control panel for straightforward operation and monitoring
• Durable stainless steel construction

Applications

• Blood banks
  Continuous agitation and short-term storage of platelet concentrates prior to transfusion
• Transfusion centres
  Support for controlled platelet handling during preparation workflows
• Hospitals
  Platelet inventory management and pre-transfusion agitation
• Clinical laboratories
  Quality-controlled platelet preservation and handling procedures
• Platelet processing
  Workflows requiring uniform suspension, consistent gas exchange and reliable bag movement

Technical Specifications

• Speed range: 50–70 RPM
• Power supply: AC 220V/110V, 50/60 Hz
• Mode of oscillation: rotary
• Timing range: 0–9,999 minutes or continuous operation
• Amplitude: 20 mm
• Workbench size: 350 × 350 mm, 8 layers (48 bags)
• Overall dimensions (W × D × H): 390 × 380 × 470 mm
• Packing dimensions (W × D × H): 500 × 500 × 530 mm
• Net weight: 20 kg
• Gross weight: 32 kg
