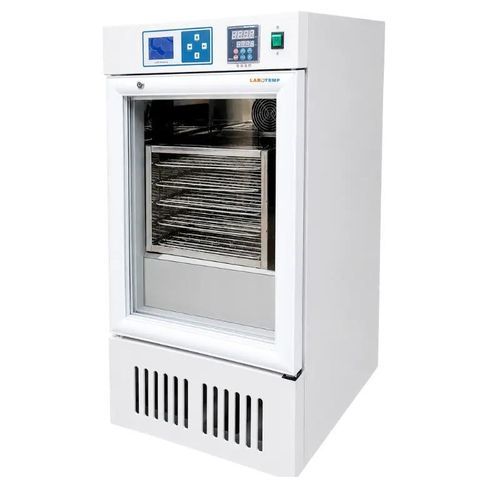

Forced air laboratory incubator LPA-102

for plateletshorizontalstainless steel

Product Overview
Labotemp Platelet Incubator with Agitator LPA-102 is a medium-capacity platelet storage system designed for safe, continuous preservation of platelet concentrates in blood banks, hospital transfusion units, transfusion centers and clinical laboratories. The unit maintains stable storage conditions in the 20–24°C range and features an integrated horizontal agitator with adjustable speed up to 60 RPM and 50 mm amplitude to prevent platelet aggregation and maintain uniform suspension. The 10-layer storage configuration accommodates approximately 20–30 platelet bags, suitable for medium-volume operations.

Control, Safety & Construction
Temperature is managed by a PID microcomputer controller with a dual LCD display for simultaneous setpoint and actual temperature monitoring, providing ±1°C stability. Forced-air circulation ensures uniform chamber temperature. The interior is mirror-finish stainless steel for corrosion resistance and easy cleaning. Safety and service features include integrated UV sterilization, automatic defrost, high/low temperature alarms with abnormal-shutdown protection, a fresh-air exchange port and a low-noise refrigeration compressor for energy-efficient operation.

Key Benefits

• 10-layer layout supporting ~20–30 platelet bags for medium-volume blood banks and labs
• Continuous horizontal agitation up to 60 RPM with 50 mm amplitude to maintain platelet suspension
• PID microcomputer temperature control with ±1°C accuracy and dual LCD monitoring
• Forced-air circulation for consistent internal temperature distribution
• Integrated UV sterilization and automatic defrost to support hygienic, uninterrupted operation

Features

• Adjustable agitation up to 60 RPM
• Horizontal oscillation mechanism with 50 mm shaking amplitude
• PID microcomputer temperature control
• Dual LCD display for set and actual temperature
• Forced-air circulation system
• High and low temperature alarms with abnormal-shutdown protection
• Integrated UV sterilization
• Automatic defrost system
• Mirror-finish stainless steel chamber
• Large transparent observation window
• Polyurethane foam insulation
• Low-noise refrigeration compressor
• Fresh air exchange port

Applications

• Blood banks: controlled storage and preservation of platelet concentrates prior to transfusion
• Hospital transfusion units: supports storage and pre-transfusion agitation within transfusion services
• Clinical laboratories and diagnostic centers: reliable conditions for platelet handling and preservation workflows
• Transfusion centers: maintenance of platelet concentrates during pre-transfusion storage and handling
• Platelet preservation workflows requiring continuous agitation and stable temperature to minimise aggregation

Technical specifications

• Power supply: 220 V, 50 Hz
• Bag capacity: 20–30 bags (10 layers)
• Recommended storage temperature: 20–24°C
• Temperature control range: 15–35°C
• Temperature control accuracy / fluctuation: ±1°C
• Control mode: PID microcomputer control
• Shaking mode: Horizontal
• Speed range: 0–60 RPM
• Shaking amplitude: 50 mm
• Cooling power: 130 W
• Heating power: 300 W
• Observation window: Large transparent window
• Air circulation: Forced-air circulation
• Insulation: Polyurethane foam
• Chamber material: Mirror-finish stainless steel
• Sterilization: Integrated UV sterilization
• Defrost system: Automatic defrost
• Fresh air exchange: Fresh-air exchange port
• Refrigeration: Low-noise refrigeration compressor
• Storage area dimensions (W × D × H): 480 × 300 × 390 mm
• Package size: 700 × 650 × 2300 mm
• Gross weight: 125 kg
