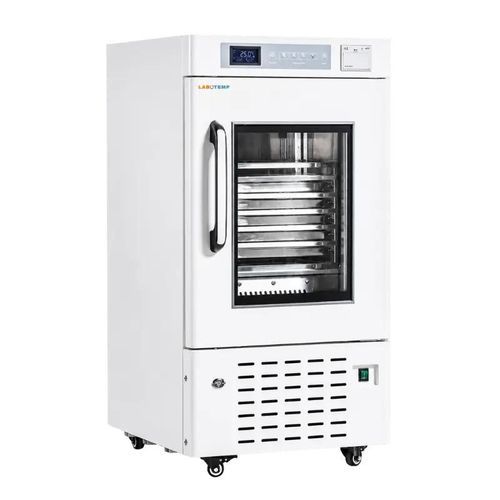

Platelet laboratory incubator LPA-106

forced airmobileon casters

Overview
Labotemp Platelet Incubator with Agitator LPA-106 provides controlled-temperature storage and gentle agitation for platelet concentrates used in blood banks, hospitals, transfusion centers, clinical laboratories and research facilities. The unit maintains 20–24°C with ±0.1°C accuracy, uses forced-air cooling for uniform distribution and integrates an oscillating agitator operating at 60 ± 5 cpm with 50 ± 10 mm amplitude. Capacity: 10 blood bags (450 mL) on five sliding trays — configured for routine platelet storage and transfusion workflows.

Design and Operation
Engineered for continuous clinical and laboratory operation, the LPA-106 features a microprocessor temperature controller with digital display, stainless steel interior and SPCC powder-coated exterior for easy cleaning and hygiene. Combined temperature control and agitation preserve platelet quality while no-frost refrigeration and a 72-hour power-failure backup protect stored units and records. Safety and operation aids include high/low temperature, power-failure, sensor error and door‑ajar alarms, lockable door, UV chamber light, built-in thermal printer and heavy-duty caster wheels for mobility.

Key Benefits

• Validated platelet storage conditions: Stable 20–24°C with ±0.1°C accuracy to support platelet viability.
• Integrated agitation: Controlled oscillation (60 ± 5 cpm, 50 ± 10 mm) to reduce platelet aggregation during storage.
• Operational reliability and traceability: No‑frost system, 72‑hour backup, alarm suite and thermal printing for documented storage logs.

Key Features

• Temperature range 20–24°C with ±0.1°C accuracy
• Integrated platelet agitator: 60 ± 5 cycles/min; amplitude 50 ± 10 mm
• Forced-air cooling for uniform chamber temperature
• No‑frost refrigeration to minimize maintenance
• Microprocessor controller with digital display
• Stainless steel interior and SPCC powder-coated exterior
• 72-hour power-failure backup
• Comprehensive alarms: high/low temperature, power failure, sensor error, door ajar
• UV light for chamber hygiene
• Built-in thermal printer for data recording
• Five sliding trays; holds 10 × 450 mL blood bags
• Lockable door and heavy-duty casters for security and mobility

Applications

• Blood banks and transfusion centers: controlled storage and continuous agitation of platelet concentrates prior to transfusion.
• Hospital blood banks and emergency transfusion services: routine and on‑demand platelet unit management.
• Clinical and diagnostic laboratories: stable storage for platelet products used in testing workflows.
• Research institutes and transfusion medicine labs: standardized preservation for hematology and biomedical research.
• Academic and teaching hospitals: training and procedural validation involving blood component handling.
• Regulated healthcare and QC facilities: temperature monitoring, alarm protection and printed records for traceability and compliance.

Specifications (summary)
Performance & Temperature
Cooling Method: Forced Air Cooling
Defrost: No Frost
Temperature Range: 20–24°C
Ambient Temperature: 10–32°C
Temperature Controller: Microprocessor
Temperature Sensor: NTC
Display: Digital Display
Noise Level: 49 dB
Power Failure Backup: 72 Hours

Storage & Safety
Platelet Storage Capacity: 10 Bags (450 mL) / 5 Layers
UV Light: Yes
Thermal Printer: Yes
Oscillation Amplitude: 50 ± 10 mm
Oscillation Frequency: 60 ± 5 cpm

Construction & Electrical
Refrigerant: R134a
External Material: SPCC Sprayed Steel
Internal Material: Stainless Steel
Power Supply: AC220V, 50/60Hz / 110V, 60Hz
Power Consumption: 197 W
Current: 0.9 A
Energy Consumption: 2.69 kWh/24h
Internal Dimensions (W × D × H): 427 × 360 × 457 mm
External Dimensions (W × D × H): 522 × 600 × 1035 mm
Net Weight: 65 kg
Gross Weight: 95 kg
Package Size: 600 × 715 × 1230 mm
