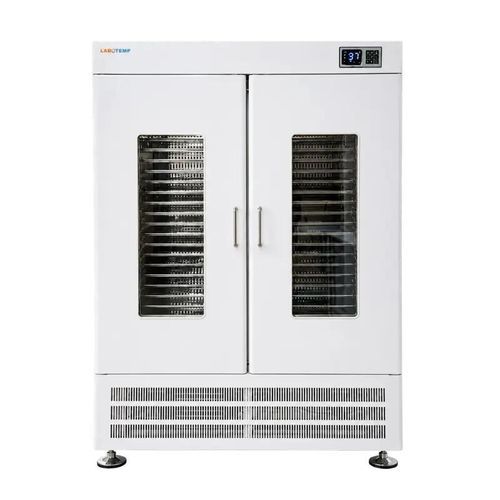

Forced air laboratory incubator LPA-104

for plateletsfor hospitalsfor healthcare facilities

Overview
Labotemp Platelet Incubator with Agitator LPA-104 is a high-capacity platelet preservation system designed to provide controlled temperature storage and continuous agitation for platelet concentrates in blood banks, hospitals, transfusion centers, and clinical laboratories. The unit maintains platelet viability during storage by combining precise temperature regulation with gentle horizontal oscillation to help prevent platelet aggregation and support optimal preservation conditions. It operates within a controlled temperature range of 15°C to 35°C using microcomputer PID control, forced-air circulation, and automatic temperature monitoring to ensure stable and uniform storage conditions throughout the chamber.

Key design highlights
The LPA-104 features a double-door configuration and spacious storage for large-scale platelet management. The integrated Platelet Agitator system provides a 50 mm oscillation amplitude with adjustable speeds up to 60 cycles per minute for continuous and consistent platelet movement. The interior is stainless steel and the unit includes automatic defrost, built-in UV sterilization, and high/low temperature alarms to enhance operational reliability, hygiene, and sample protection.

Features

• Built-in UV sterilizer
• High/low temperature and power failure alarms
• Stainless-steel interior with large viewing window
• Low-noise refrigeration system with polyurethane insulation
• Forced-air circulation for uniform temperature distribution
• Large glass viewing door for easy sample inspection
• 40-shelf configuration for organized sample storage
• Continuous horizontal reciprocating motion for sample preservation

Applications

• Ideal for platelet concentrate storage and preservation in blood banks, hospital transfusion services, plasma collection centers, and clinical laboratories requiring controlled temperature and continuous agitation
• Suitable for blood component management, transfusion medicine programs, quality-controlled sample holding, biomedical research, and healthcare facilities maintaining platelet viability prior to clinical use

Specifications (summary)

• Storage Capacity: 80–120 Bags
• Temperature Control Range: 15°C–35°C
• Power Supply: 220V 50/60Hz
• Heating Power: 300 W
• Cooling Power: 130 W
• Temperature Accuracy: ±1°C
• Temperature Fluctuation: ±1°C
• Temperature Control Mode: Microcomputer PID Control
• Oscillation Type: Horizontal
• Speed Range: 0–60 cycles/min
• Oscillation Amplitude: 50 mm
• Air Circulation: Forced-air circulation
• Display: Digital microcomputer temperature display
• UV Sterilization: Built-in UV sterilization function
• Defrosting: Automatic defrosting
• Viewing Window: Large glass viewing window
• Interior Material: Stainless steel
• Insulation: High-density polyurethane foam
• Compressor Type: Fully enclosed low-noise compressor
• Internal Storage Area (W × D × H): 980 × 300 × 810 mm
• Number of Shelves: 20 shelves × 2 (double door type, total 40 shelves)
• Chamber Motion: Left-right horizontal reciprocating motion
• Temperature Uniformity: Forced-air uniform temperature distribution
• Alarm Functions: High/low temperature alarm, power failure alarm
• Net Weight: 320 kg
• Gross Weight: 350 kg
• Package Size: 1370 × 720 × 1970 mm

Technical specifications

• Storage Capacity: 80–120 Bags
• Temperature Control Range: 15°C–35°C
• Power Supply: 220V 50/60Hz
• Heating Power: 300 W
• Cooling Power: 130 W
• Temperature Accuracy: ±1°C
• Temperature Fluctuation: ±1°C
• Temperature Control Mode: Microcomputer PID Control
• Oscillation Type: Horizontal
• Speed Range: 0–60 cycles/min
• Oscillation Amplitude: 50 mm
• Air Circulation: Forced-air circulation
• Display: Digital microcomputer temperature display
• UV Sterilization: Built-in UV sterilization function
• Defrosting: Automatic defrosting
• Viewing Window: Large glass viewing window
• Interior Material: Stainless steel
• Insulation: High-density polyurethane foam
• Compressor Type: Fully enclosed low-noise compressor
• Internal Storage Area (W × D × H): 980 × 300 × 810 mm
• Number of Shelves: 20 shelves × 2 (double door type, total 40 shelves)
• Chamber Motion: Left-right horizontal reciprocating motion
• Temperature Uniformity: Forced-air uniform temperature distribution
• Alarm Functions: High/low temperature alarm, power failure alarm
• Net Weight: 320 kg
• Gross Weight: 350 kg
• Package Size: 1370 × 720 × 1970 mm
