Dental autoclave LDA-01

medicallaboratoryclinical

Product Description

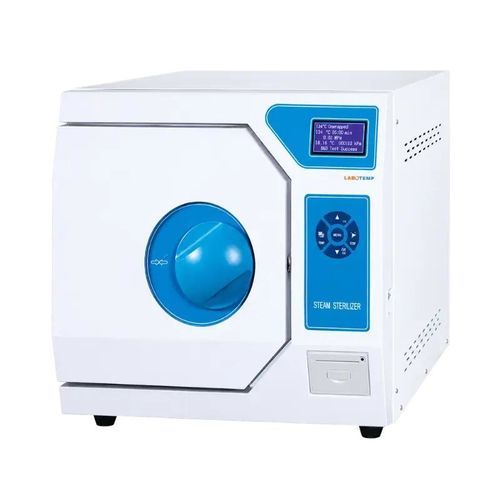

Labotemp Dental Autoclave LDA-01 is a Class B steam autoclave designed for dental clinics, laboratories and medical practices that require vacuum-assisted steam sterilization. This benchtop unit features an 8 L stainless-steel chamber sized for handpieces, hollow instruments, cassettes and wrapped loads. Triple pre-vacuum and an internal steam generator deliver validated cycles up to 134°C. Integrated BD, Helix and vacuum test support plus LCD touch controls and USB/printer outputs enable cycle validation and traceability.

Design & Operation
Compact benchtop footprint with low power consumption (2 kW) and dual-voltage operation (110/220V, 50/60Hz). Microcomputer-controlled automation with LCD touch interface, automatic water management, cold-air discharge and steam exhaust. Safety systems include over-temperature, over-pressure and low-water protection plus an automatic door-lock with stop function. Compliant with European Class B sterilization requirements.

Key Benefits

• Validated Class B vacuum cycles for complex and hollow instruments (supports BD, Helix and vacuum tests).
• Advanced automation and data output for traceability: preprogrammed cycles, automatic water handling and USB/printer outputs.
• Clinic-ready benchtop design: compact size, low power draw and simple utility needs.

Features

• Triple pre-vacuum
• Microcomputer-based automatic sterilization control
• LCD display with touch-button operation
• Supports BD test, Helix test and vacuum test
• Built-in steam generator for rapid saturated steam production
• Automatic cold air discharge and steam exhaust system
• Integrated printer, USB and U-disk data output
• Safety protections for over-temperature, over-pressure and low water level
• Safety door locking mechanism with automatic stop function
• Compact tabletop design suitable for limited workspace installations
• Compliant with European Class B sterilization standard

Applications

• Dental clinics
  Sterilization of dental handpieces, hollow instruments, wrapped tools, surgical kits and reusable dental devices
• Medical practices
  Routine sterilization of compatible medical instruments and reusable equipment
• Laboratories
  Sterilization of laboratory instruments, glassware and other materials requiring Class B steam sterilization
• Veterinary clinics
  Reliable sterilization for suitable reusable veterinary instruments and equipment
• Clinical & diagnostic facilities
  Supports validated sterilization workflows requiring vacuum-assisted steam penetration, cycle monitoring and traceable records

Technical specifications

• Capacity: 8 L
• Chamber Volume: Φ170 × 320 mm
• Rated Working Temperature: 134°C
• Rated Working Pressure: 0.22 MPa
• Design Temperature: 139°C
• Design Pressure: 0.25 MPa
• Voltage: 110V/220V, 50Hz/60Hz
• Power: 2 kW
• Outer Dimension (L × W × H): 445 × 580 × 400 mm
• Packing Size (L × W × H): 650 × 500 × 450 mm
• Net Weight: 42 kg
