Dental autoclave LDA-07

laboratoryCSSDfor veterinary clinics

Product overview

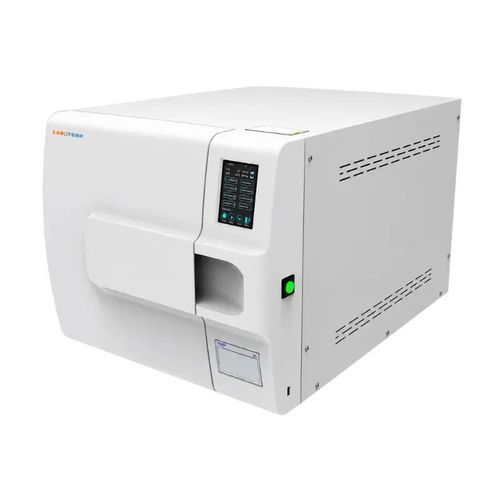

Labotemp Dental Autoclave LDA-07 is a Class B steam autoclave with a 45 L stainless steel chamber (Ø316×615 mm) and integrated steam generator. Engineered for dental clinics, hospitals, CSSD units, laboratories and veterinary centers, it uses triple pre‑vacuum technology to ensure reliable steam penetration for hollow and wrapped instruments and supports validated sterilization cycles up to 134°C.

Key benefits

• 45 L chamber for high‑volume processing of handpieces, implant kits and instrument trays.
• Efficient energy use: 2.5 kW power rating with standard 220/110 V compatibility.
• Traceable cycle documentation via built‑in printer and USB/U‑disk output.
• Designed to meet ISO and CE requirements for regulated sterilization environments.

Features

• Automatic door switch and safety door locking for unattended operation.
• Triple pre‑vacuum cycles to improve steam penetration in hollow and packaged loads.
• Sealed stainless steel chamber for hygiene and durability.
• Microcomputer control with LED display for intuitive cycle selection and monitoring.
• Integrated steam generator for rapid saturated steam production and reduced cycle times.
• Integrated BD, Helix and vacuum test functions for routine validation.
• Automatic cold‑air admission and post‑cycle steam exhaust to protect instruments.
• Protections against over‑temperature, over‑pressure and low‑water level; anti‑dry‑burn with buzzer and auto stop.
• USB, U‑disk and built‑in printer support for cycle records and traceability.
• Standard test interface for sterilization validation protocols.

Applications

• Dental clinics
  Bulk sterilization of handpieces, wrapped instruments, hollow tools, implant kits and surgical sets.
• Hospitals & CSSD units
  Validated Class B steam sterilization for compatible medical and surgical instruments.
• Laboratories
  Sterilization of glassware, instruments and accessories in diagnostic and research labs.
• Veterinary centers
  Routine sterilization of reusable veterinary instruments and equipment.
• Research & healthcare facilities
  Workflows requiring reliable infection control, cycle validation and traceable documentation.

Technical specifications

• Capacity: 45 L
• Rated working temperature: 134°C
• Design pressure: 0.25 MPa
• Design temperature: 139°C
• Rated working pressure: 0.22 MPa
• Chamber dimensions: Ø316 × 615 mm
• Voltage: 220 V / 110 V, 50 Hz/60 Hz
• Power: 2.5 kW
• Outer dimensions (L × W × H): 657 × 870 × 575 mm
• Packing size (L × W × H): 980 × 750 × 630 mm
• Net weight: 105 kg
• Gross weight: 142 kg
