Laboratory sterilizer LDA-03

veterinaryfor dental officesmedical

Overview

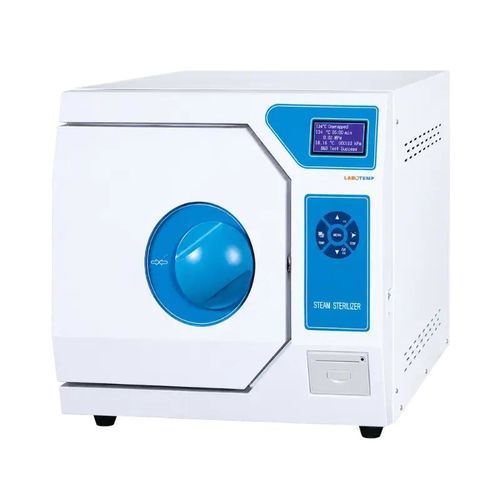

Labotemp Dental Autoclave LDA-03 is a Class B bench-top steam autoclave for sterilization of dental and medical instruments. The 18 L stainless steel chamber accepts handpieces, hollow instruments, cassettes and wrapped loads, providing vacuum-assisted steam penetration for validated sterilization cycles.

Design & Operation
Compact bench-top design with microcomputer control and LCD touch interface. Dual voltage 110/220V, 2 kW power. Automatic water management, pre-vacuum cycles, air discharge and built-in printer enable traceable operation. Integrated BD, Helix and vacuum test functions support routine validation. Multiple safety protections and CE/ISO compliance are provided.

Key benefits

• Class B vacuum sterilization: Triple pre-vacuum system for effective sterilization of hollow and wrapped instruments.
• Workflow integration: LCD touch control, USB/U-disk and printer connectivity for cycle records and documentation.
• Clinic-oriented capacity: 18 L chamber in a compact benchtop format suitable for dental clinics, veterinary practices and small hospitals.

Features

• Built-in printer
• Triple pre-vacuum sterilization system
• Stainless steel sterilization chamber
• Adjustable sterilization temperature up to 134°C
• Microcomputer-controlled automatic cycles
• LCD touch display
• Integrated BD, Helix and vacuum tests
• Automatic water fill and steam exhaust
• Door interlock and safety protections
• Low-water level and anti-dry burn protection
• USB/U-disk and printer data output

Applications

• Sterilization of dental handpieces and hollow instruments
• Wrapped surgical kits and cassettes
• Laboratory glassware and reusable medical devices
• Suitable for dental clinics, veterinary practices, hospitals and research laboratories
• For Class B sterilization processes requiring vacuum-assisted steam penetration and traceable documentation

Specifications

• Model: LDA-03
• Class: B bench-top steam autoclave
• Chamber material: Stainless steel
• Chamber capacity: 18 L (Ø250 × 370 mm)
• Rated working temperature: 134°C (adjustable)
• Design temperature: 139°C
• Rated working pressure: 0.22 MPa
• Design pressure: 0.25 MPa
• Power supply: 110V/220V, 50/60Hz
• Power consumption: 2 kW
• External dimensions: 480 × 640 × 450 mm
• Packing size: 720 × 560 × 610 mm
• Net weight: 48 kg; Gross weight: 57 kg
• Controls & outputs: Microcomputer control, LCD touch display, USB/U-disk/printer
• Safety & protection: Door interlock, over-temperature and over-pressure protection, low water level and anti-dry burn
• Testing & validation: Integrated BD, Helix and vacuum tests; built-in printer for traceable records
