Hospital sterilizer LDA-06

dentalfor veterinary clinicslaboratory

Overview

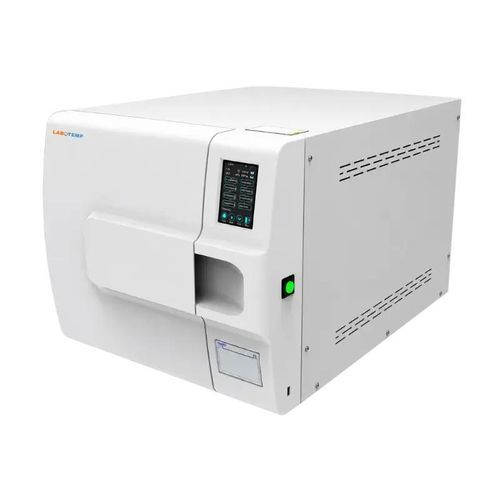

Labotemp Dental Autoclave LDA-06 is a Class B benchtop steam autoclave engineered for dental clinics, hospitals, laboratories and veterinary practices. It features a triple pre-vacuum system and a fast integrated steam generator to achieve sterilization up to 134°C, enabling reliable elimination of bacteria, viruses and spores. Compact benchtop footprint, microcomputer control and LED touch operation streamline routine and validated sterilization workflows.

Key Benefits

• Meets European Class B standard for processing of solid, porous and hollow instruments
• Triple pre-vacuum improves steam penetration for effective sterilization of lumened instruments
• 23 L chamber provides high throughput while conserving bench space
• Integrated printer and USB/U-disk support for cycle records and traceability
• Built-in BD, Helix and vacuum test functions to support validation and audits

Features

• Automatic water feed and fast heating with integrated steam generation
• Microprocessor-controlled sterilization cycles for consistent performance
• LED control panel with touch/inductive operation
• Automatic door interlock, automatic water filling, air discharge and post-cycle steam exhaust
• Multiple safety protections: over-temperature, over-pressure, low-water and anti-dry heating protection
• Automatic cycle stop with buzzer notification
• Built-in BD, Helix and vacuum tests; integrated printer and USB/U-disk data export

Applications

• Sterilization of wrapped instruments, hollow tools, dental handpieces and surgical kits
• Sterilization of glassware and laboratory items in dental clinics, hospitals, veterinary centers, research labs and CSSD
• Supports infection control programs and routine sterilization validation with traceable documentation

Technical table
Capacity : 23 L
Rated Working Temperature : 134°C
Voltage : 220V / 110V, 50Hz/60Hz
Power : 2 kW
Design Pressure : 0.25 MPa
Design Temperature : 139°C
Rated Working Pressure : 0.22 MPa
Chamber Volume : Ø250 × 470 mm
Outer Dimension : 505 × 710 × 450 mm
Packing Size (L × W × H) : 760 × 560 × 510 mm
Net Weight : 58kg
Gross Weight : 65kg

Caractéristiques / spécifications techniques

• Model: LDA-06
• Manufacturer: Labotemp
• Class: European Class B steam autoclave
• Chamber capacity: 23 L (chamber Ø250 × 470 mm)
• Rated working temperature: 134°C (design temperature 139°C)
• Rated working pressure: 0.22 MPa (design pressure 0.25 MPa)
• Power: 2 kW; Voltage compatibility: 220V / 110V, 50Hz/60Hz
• Benchtop footprint: Outer dimensions 505 × 710 × 450 mm
• Packing size: 760 × 560 × 510 mm; Net weight 58 kg; Gross weight 65 kg
• Triple pre-vacuum system, integrated steam generator, microprocessor control with LED display
• Automatic water filling, air discharge, steam exhaust, door interlock and multiple safety protections
• Built-in BD, Helix and vacuum tests; integrated printer and USB/U-disk data export
