CSSD sterilizer LDA-05

dentalveterinarymedical practice

Overview

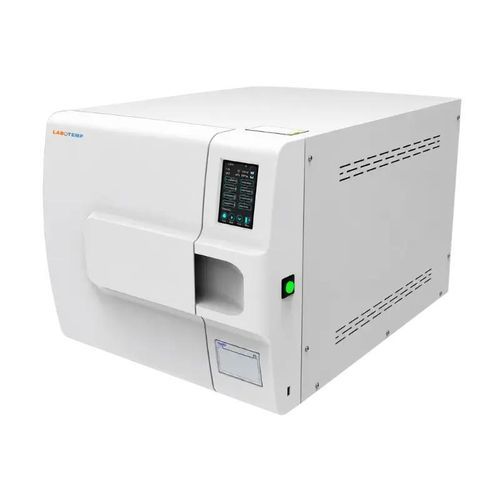

Labotemp Dental Autoclave LDA-05 is a Class B tabletop steam sterilizer with an 18 L stainless-steel chamber (Ø250 × 370 mm) engineered for dental clinics, medical practices, laboratories and veterinary centers. Triple pre-vacuum cycles and a fast integrated steam generator deliver saturated steam up to 134°C for validated instrument sterilization and reliable bioburden control.

Design and Operation
Compact benchtop unit designed for energy-efficient operation (2 kW, 110/220 V). Microcomputer control with LED display and touch interface simplifies cycle selection and monitoring. Automatic water fill, cold-air discharge and post-cycle steam exhaust streamline workflow. Integrated printer and USB/U-disk output enable traceable cycle records and easy documentation.

Key advantages

• Optimal capacity: 18 L chamber fits handpieces, hollow instruments, cassettes and wrapped sets while remaining tabletop-friendly.
• Reliable sterilization: Class B processes with triple pre-vacuum ensure deep steam penetration into complex loads.
• Traceability and compliance: built-in BD/Helix/vacuum tests, printer and USB export support validation and audits.

Features

• LED display and microprocessor control
• European Class B sterilization cycles
• Triple pre-vacuum system
• Fast heating with integrated steam generation
• Automatic water inlet and cold-air discharge
• Post-cycle steam exhaust and safety interlock
• Built-in BD, Helix and vacuum test functions
• Multiple protections: over-temperature, over-pressure, low-water and anti-dry heating
• Automatic cycle stop with audible alert
• Integrated printer and USB/U-disk support for data export

Applications

• Sterilization of wrapped instruments, hollow tools, dental handpieces, surgical kits, glassware and laboratory items in dental clinics, hospitals, veterinary centers, research labs and CSSD settings.
• Supports routine infection control, sterilization validation and audit-ready documentation with BD/Helix testing and data logging.

Technical specifications

• Capacity: 18 L
• Rated working temperature: 134°C
• Voltage: 220 V / 110 V, 50 Hz / 60 Hz
• Power: 2 kW
• Design pressure: 0.25 MPa
• Design temperature: 139°C
• Rated working pressure: 0.22 MPa
• Chamber dimensions: Ø250 × 370 mm
• Outer dimensions: 620 × 505 × 450 mm
• Packed size (L × W × H): 670 × 560 × 510 mm
• Net weight: 53 kg
• Gross weight: 62 kg
