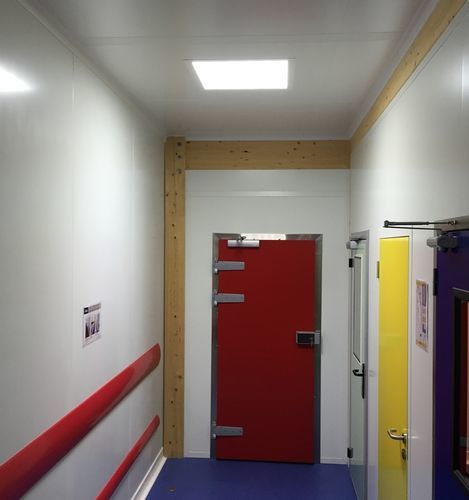

Cleanroom LED panel DALSP-E series

for ceilingrecessedIP65

Overview
The DALSP-E-BAM-6P6 is a recessed LED luminaire engineered for cleanrooms and controlled environments (ISO 5 to ISO 9), suitable for life sciences and semiconductor facilities. It is flush-mounted with accidental walk-on protection and compatible with hydrogen peroxide (H2O2) vapor decontamination.

Key points

• ISO 5 to ISO 9 cleanroom compatibility
• Flush on one or both sides with incidental walk-on protection (0.9 kN)
• Adapted for T56 grid ceilings or sandwich panels
• Designed to avoid surface-retained contamination
• Resistant to hydrogen peroxide vapour (H2O2) treatments
• Lifetime (L70B10): 100,000 hours
• Multiple luminous flux, dimensions, options and dimming modes available

Innovative

• Accidental walk-on protection (0.9 kN) enables safe circulation and simplified maintenance above ceilings.
• Flush installation from both sides: compatible with modular or sandwich panels from 50 to 200 mm.

Savings

• Very long lifetime (L70B10: 100,000 hours), low energy consumption and multiple dimming options (0–10V or DALI) reduce operating costs.

Polyvalent

• Available luminous flux options to meet specific illumination requirements and constraints.

Material

• Opal diffuser in PMMA; glass diffuser available as an option.
• Robust IP65 mechanical construction in powder‑coated steel – RAL 9010.

Mounting

• Install the front frame into the opening, position and lock the back frame, then assemble the backplate that supports the electronics.

Power supply

• Powered by 230 Vac, 50 Hz. Integrated driver available with 0–10V or DALI dimming modes.

Technical specifications

• Dimensions (L × W): 644 × 644 mm — Height: 50 to 200 mm
• Weight: 14 kg
• Lifetime (L70B10): 100,000 hours
• Colour temperature: 4800 K
• Diffuser: Opal PMMA (glass optional)
• Luminous flux: 3060 / 3550 / 3920 / 4480 / 5300 lm
• Power: 19 / 22 / 26 / 30 / 36 W
• Operating temperature: −30 °C to +60 °C
• UGR: < 19
• Cleanroom class (ISO 14644-1): ISO 5 to ISO 9
• GMP class: B to D
• Design & manufacturing: France
• Warranty: 5 years
