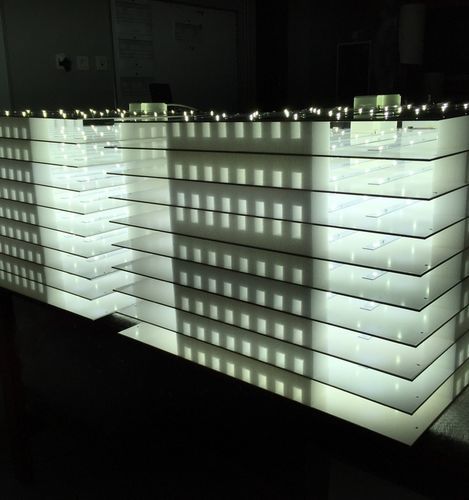

Cleanroom LED panel REVAMPING

ceiling-mounted

Overview
LED lighting solution designed for revamping projects to replace fluorescent tubes in existing installed fixtures. Compatible with a wide range of fluorescent housings and suitable for cleanroom classifications ISO 5, ISO 6, ISO 7, ISO 8 and ISO 9.

Key points

• Adaptable solution for various dimensions of existing light housings
• Mechanical and electronic design adapted to each installation
• Improved photometric diffusion
• Replacement can be performed with room activity maintained
• Compliance with applicable regulations, including European electrical safety
• Adjustable luminous flux
• Available power levels from 18 W to 60 W (VA)

Revamping concept
For renovation or refurbishment of cleanrooms, LUCISBIO provides retrofit solutions to replace fluorescent tubes without using original fluorescent connectors. The retrofit components are dimensioned and weighted to fit existing housings. Mechanical design is validated in 3D to ensure straightforward installation. The concept preserves the original fixture IP rating and provides electrical protection by regulating current and protecting LEDs from supply imperfections. Thermal dissipation is engineered to preserve LED lifetime while ensuring reliable operation with minimal maintenance downtime.

Technical specifications

• Applicable cleanroom classes: ISO 5, ISO 6, ISO 7, ISO 8, ISO 9
• Available power levels: 18 W to 60 W (VA)
• Designed to retrofit existing fluorescent housings (mechanical dimensions and weight adapted)
• Typical fluorescent tube supply references: 120 V for 1200 mm units; 60 V for 600 mm units
• Maintains original fixture IP rating (protection against dust and water)
• Mechanical design validated in 3D for installation simplicity
• Integrated power conversion: current regulation, supply protection, luminous flux adjustment
• Thermal dissipation engineered to preserve LED lifetime
• Improved photometric diffusion
• Room activity can be maintained during replacement
• Compliance with applicable European electrical safety regulations
