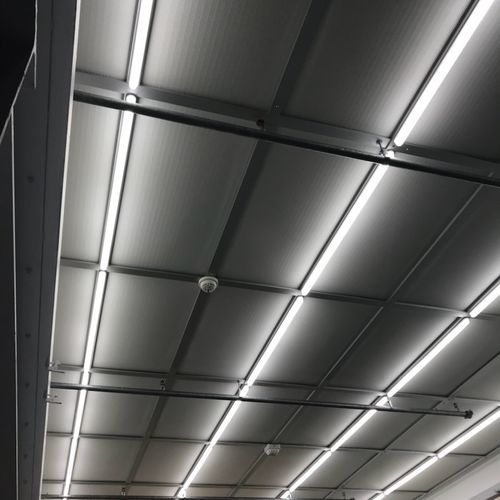

Cleanroom LED panel LEDSP series

ceiling-mountedfor ceilingIP65

Overview
The LEDSP is a compact, surface-mounted LED luminaire specifically designed for cleanrooms in life sciences and microelectronics (ISO 2 to ISO 9). Engineered to avoid particulate retention and compatible with hydrogen peroxide vapour (H2O2) decontamination processes, it integrates directly with filter frames, FFU modules and local laminar flow units.

Key features

• ISO classes: ISO 2 to ISO 9
• Surface-mounted design with no disruption of surrounding laminar airflow
• No surfaces that retain particulates or chemical residues
• Resistant to heavy hydrogen peroxide vapour treatments (H2O2)
• Rated lifetime: 60,000 hours (L70B10)

Design
The tear-drop profile and smooth polycarbonate diffuser eliminate particle traps and integrate with filter-frame geometries for the most sensitive cleanroom zones (ISO 2 to ISO 6). The form factor preserves FFU and LAF airflow performance.

Savings
Using the latest LED technology with luminous efficacy above 130 lm/W, the LEDSP reduces facility energy consumption and operating costs while maintaining required illumination levels.

Versatility
Compact dimensions and a quick clip-on mounting system enable retrofit installations on filter frames and new-build applications under strict cleanroom constraints.

Material
Sealed luminaire with moulded opal polycarbonate diffuser mounted on an electronics and LED support plate. Construction avoids crevices and retention surfaces for particles or chemicals.

Mounting
Pairs of clips secure the luminaire directly to the filter frame for fast, tool-free installation without modifying the filtration module.

Powering
Standard supply: 230 VAC, 50 Hz.

Technical specifications (table)
Dimensions L × W × H: 585 × 42 × 35 mm / 1197 × 42 × 35 mm
Mass: 0.4 kg / 0.8 kg
Lifetime (L70B10): 60,000 hours
Colour temperatures: Cool White 5700 K (BF), Neutral White 4000 K (BN)
Diffuser: Opal polycarbonate
Luminous flux: 1,050 lm / 2,100 lm
Power: 8 W / 13 W
Operating temperature: -35°C to +60°C
UGR: < 19
Class (ISO 14644-1): ISO 2 to ISO 9
Class (GMP): A to D
Design & manufacturing: France
Warranty: 3 years

Technical specifications

• Dimensions L × W × H: 585 × 42 × 35 mm or 1197 × 42 × 35 mm
• Mass: 0.4 kg or 0.8 kg
• Lifetime (L70B10): 60,000 hours
• Colour temperatures: Cool White 5700 K (BF), Neutral White 4000 K (BN)
• Diffuser: Opal polycarbonate
• Luminous flux: 1,050 lm / 2,100 lm
• Power: 8 W / 13 W
• Operating temperature: -35°C to +60°C
• UGR: < 19
• Class (ISO 14644-1): ISO 2 to ISO 9
• Class (GMP): A to D
• Design & manufacturing: France
• Warranty: 3 years
