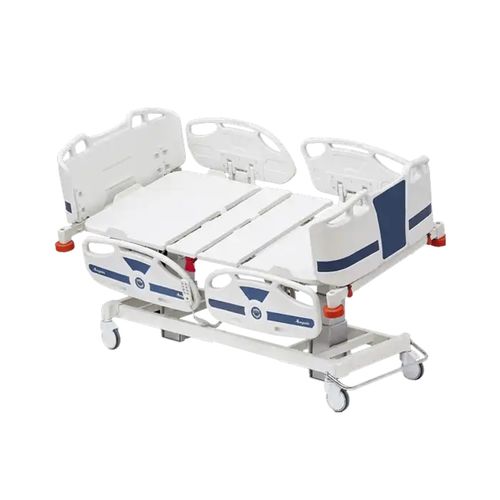

Intensive care bed MYS-5550NE

electricTrendelenburgheight-adjustable

Product Overview
Meyosis MYS-5550NE — 5-motor column ICU bed with lateral movement, designed in accordance with EN 60601-2-52 for intensive care use.

Summary
Designed with a participatory approach, the MYS-5550NE provides multi‑function positioning and clinical features required for ICU care. Controls are provided for both patient-side and attendant-side operation, with electrical CPR and safety locking.

General Features

• Backrest, legrest and knee articulation, height adjustment, vascular, Trendelenburg and reverse Trendelenburg positions driven by 3 DC motors and 2 column motors
• Hand control at head end and attendant control at foot end (attendant control includes electric CPR and function lock)
• One‑button presets for semi‑fowler, shock, cardiac, examination and bed‑exit positions
• 24 V battery backup for power interruption
• Dual auto‑regression system to reduce abdominal pressure and pelvic friction
• Manual CPR function
• Removable polypropylene (PP) head and foot panels
• Split PP side rails with soft‑drop release mechanism and angle indicator
• Four independent, detachable ABS lying sections
• X‑ray cassette sleeve for on‑bed imaging
• Antibacterial electrostatic powder‑coated steel frame and ABS‑covered chassis
• Ø125 mm swivel castors 360° with central brake and directional lock
• Corner accessory adaptors, one height‑adjustable IV pole, urine bag holders and belt hooks on both sides
• Protective plastic bumpers on corners; alternative side‑rail color options
• 26‑density foam mattress with antibacterial, waterproof, zippered cover (11 cm thickness)

Dimensions
Width: 103 cm
Length: 218 cm
Min. height: 49 cm
Max. height: 88.5 cm

Mattress Dimensions
Mattress width: 90 cm
Mattress length: 190 cm
Mattress thickness: 11 cm

Technical specifications

• Model: MYS-5550NE (5‑motor ICU bed configuration)
• Drive: 5 motors (3 DC motors for back/leg/knee articulation + 2 column motors for height and vascular positions)
• Controls: Hand control at head end; attendant control at foot end with electric CPR and function lock
• Preset positions: semi‑fowler, shock, cardiac, examination, bed exit
• Battery: 24 V backup
• Auto‑regression: Dual auto‑regression to decrease abdominal pressure
• CPR: Electric and manual CPR functions
• Head/Foot ends: Removable PP panels
• Side rails: Split PP with soft drop release and angle indicator
• Lying sections: 4 independent, detachable ABS sections
• X‑ray: On‑bed X‑ray cassette sleeve
• Frame: Antibacterial electrostatic powder coated steel; chassis covered in ABS
• Wheels: Ø125 mm swivel castors 360° with central brake and directional lock
• Accessories: Corner adaptors, height‑adjustable IV pole, urine bag holders, belt hooks, protective bumpers
• Mattress: Foam density 26, antibacterial waterproof zip cover, thickness 11 cm
• Overall dimensions: 103 x 218 cm (W x L); adjustable height 49–88.5 cm
• Standards: Designed according to EN 60601-2-52
