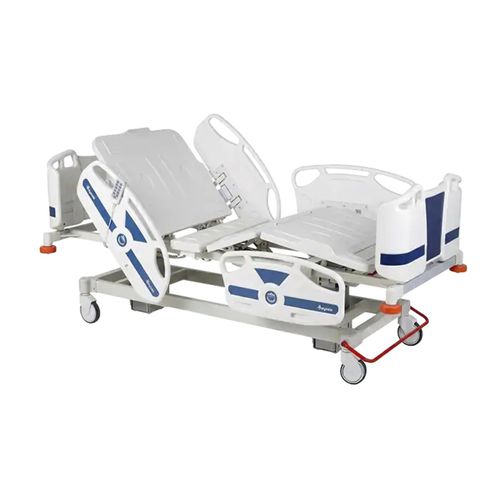

Intensive care bed MYS-5510B

hospitalelectricbariatric

Product overview
Meyosis intensive care beds are designed for bariatric and ICU use in compliance with EN 60601-2-52. The MYS-5510B focuses on patient positioning, caregiver ergonomics and clinical safety.

Model
MYS-5510B

General Specifications

• 4-motor configuration (2 DC + 2 column motors) controlling backrest, legrest, knee, height, vascular, Trendelenburg and reverse Trendelenburg positions.
• Positioning via hand control at the head end; attendant control includes electric CPR and function lock.
• One-touch presets on attendant control: semi-Fowler, shock, cardiac, examination and bed exit positions.
• 24V battery backup for safe repositioning during power loss.
• Dual auto-regression system to reduce abdominal pressure and pelvic shear.
• Removable polypropylene (PP) head and footboards with color panels.
• Split PP side rails with soft-drop mechanism and angle indicator.
• Four independent, detachable ABS mattress sections for hygiene and access.
• Antibacterial electrostatic powder-coated steel frame and ABS-covered chassis.
• Ø125 mm 360° swivel castors with central brake and directional lock.
• Corner accessory adaptors and one height-adjustable IV pole included.

Additional features

• Urine bag holders and belt hooks on both sides.
• Protective plastic corner bumpers.
• Alternative color options for side rails.
• 26-density foam mattress with antibacterial, waterproof, zippered cover.

Bed dimensions
Width: 103 cm
Length: 218 cm
Height: 49 – 88.5 cm

Mattress dimensions
Width: 110 cm
Length: 200 cm
Height: 20 cm

Technical specifications

• Brand: Meyosis.
• Model: MYS-5510B.
• Configuration: 4 motors (2 DC + 2 column motors).
• Controls: Head-end hand control; attendant control with electric CPR, function lock and one-button presets.
• Power backup: 24V battery.
• Sleeping surface: 4 independent detachable ABS sections.
• Frame & chassis: Antibacterial powder-coated steel frame; ABS-covered chassis; removable PP head/footboards.
• Side rails: Split PP with soft-drop mechanism and angle indicator.
• Wheels: Ø125 mm swivel castors, central brake, directional lock.
• Accessories: Corner adaptors, height-adjustable IV pole, urine bag holders, belt hooks.
• Mattress: 26-density foam, antibacterial waterproof zip cover.
• Bed dimensions (W×L×H): 103 × 218 × 49–88.5 cm.
• Mattress dimensions (W×L×H): 110 × 200 × 20 cm.
