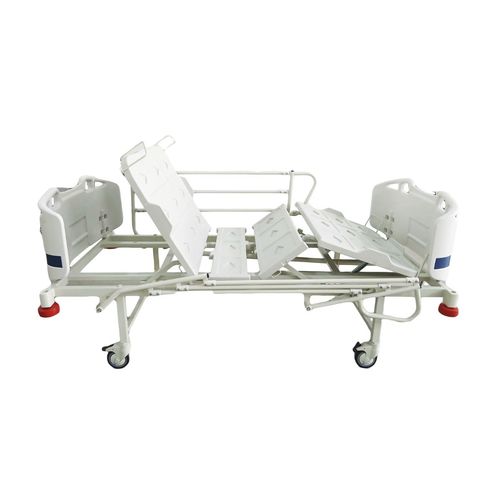

Hospital bed MYS-502BN

mechanicalwith locking wheels4 sections

Product overview
Meyosis mechanical hospital bed with 2 cranks designed in line with EN 60601-2-52. With the motto 'Comfort in Treatment', the bed is engineered to provide comfort for the patient and ergonomic operation for healthcare staff.

General features

• Back and leg movements are controlled by 2 cranks located at the foot end.
• Head and foot boards are made of PP (polypropylene) plastic and are demountable.
• 2 collapsible side rails made of aluminum.
• 4-piece laying surface made of ABS plastic.
• Metal chassis with epoxy polyester electrostatic paint, covered with ABS plastic.
• 4 corner bumpers for protection.
• Cross Brake System: locks on two cross wheels.
• 4 IV ports on the four corners and one adjustable IV pole.
• Back movement controlled by the left crank; leg movement by the right crank.
• Legs are disassemblable for easy transport and assembly.

Dimensions
Width: 111 cm
Length: 215 cm
Height: 55 cm

Technical specifications

• Model: MYS-502BN
• Standard compliance: EN 60601-2-52
• Bed type: Mechanical hospital bed with 2 cranks (foot-end cranks)
• Operating controls: Left crank for back movement, right crank for leg movement
• Head/foot boards: PP plastic, demountable
• Laying surface: 4-piece ABS plastic
• Side rails: 2 collapsible aluminum rails
• Chassis: Metal chassis with epoxy polyester electrostatic paint, covered with ABS plastic
• Wheels: Cross Brake System with locks on two cross wheels
• Bumpers: 4 corner bumpers
• IV provision: 4 IV ports on corners plus one adjustable IV pole
• Assembly: Disassemblable legs designed for easy assembly
• Overall dimensions: L 215 cm x W 111 cm x H 55 cm
