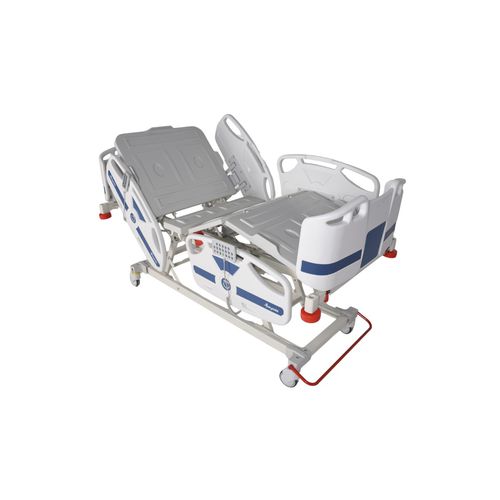

Intensive care bed MYS-5410NE

electricTrendelenburgheight-adjustable

Product overview
The MYS-5410NE is an intensive care (ICU) hospital bed designed to meet EN 60601-2-52. It provides electrically controlled patient positioning and clinical functions intended for use in intensive care and high-dependency units.

General features

• Four DC motors control backrest, legrest/knee, height and Trendelenburg/reverse Trendelenburg positions
• Hand control located at the head side for patient adjustments; attendant control panel with electric CPR and function lock
• Dual auto-regression mechanism reduces abdominal pressure and pelvic shear
• Removable head and foot panels in polypropylene (PP)
• Split PP side rails with soft-drop release and angle indicator
• Four independent, detachable lying sections in ABS
• Antibacterial electrostatic powder-coated steel frame and ABS-covered chassis
• Ø125 mm swivel castors with 360° rotation, central brake and directional lock
• Corner accessory adaptors, height-adjustable IV pole, urine bag holders and belt hooks on both sides
• Protective plastic bumpers on corners and alternative color options for side rails
• 26-density foam mattress with antibacterial, waterproof, zippered cover

Dimensions
Overall width: 103 (cm)
Overall length: 218 (cm)
Height range: 40–80 (cm)

Mattress
Mattress width: 85 (cm)
Mattress length: 200 (cm)
Mattress thickness: 12 (cm)
26-density foam with antibacterial, waterproof and zippered cover

Technical specifications

• Model: MYS-5410NE (4-motor ICU hospital bed)
• Compliance: EN 60601-2-52
• Actuation: 4 DC motors for backrest, legrest/knee, height, Trendelenburg/reverse Trendelenburg
• Controls: Hand control at head side; attendant panel with electric CPR and function lock
• Regression: Dual automatic regression to reduce abdominal pressure and pelvic friction
• Bed sections: 4 independent detachable ABS sections; removable PP head/foot panels
• Frame: Antibacterial electrostatic powder-coated steel; ABS-covered chassis
• Wheels: Ø125 mm swivel castors, 360° rotation, central braking and directional lock
• Accessories: Corner adaptors, height-adjustable IV pole, urine bag holders, belt hooks
• Protection: Corner bumpers in plastic
• Options: X-ray pass-through compatibility, optional weighing system, central braking configuration on wheels, alternative side-rail colors
