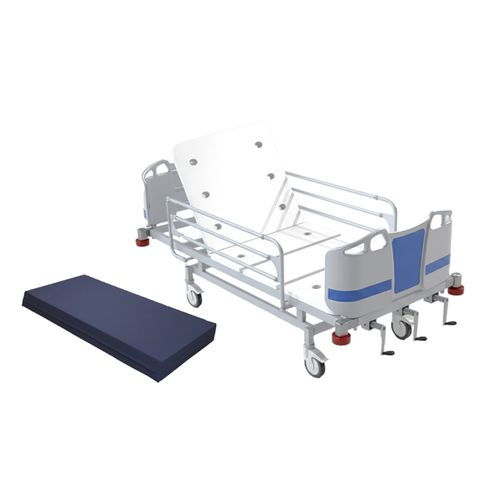

Hospital bed MYS-503N2

manualheight-adjustablereclining

Product overview
Meyosis mechanical hospital bed MYS-503N2 is designed in accordance with EN 60601-2-52. Developed for clinical use, it provides manual adjustment of backrest, leg section and overall height via three cranks located at the footend. Intended for standard ward and care environments.

General specifications

• Back movement, leg movement and height adjustment operated by 3 manual cranks at the footend.
• Headboard and footboard made of PP plastic.
• Two folding aluminum side rails.
• Lying surface composed of 4 ABS sections.
• Metal chassis finished with epoxy polyester electrostatic paint and covered with ABS plastic.
• Cross Brake System: locks on two cross wheels of the bed for stability.
• Four IV holes located at the four corners of the bed and one adjustable IV pole.
• Four corner bumpers for impact protection.
• Back movement controlled by the left crank; leg movement by the right crank; height by the central crank.

Dimensions
Width: 111 cm
Length: 215 cm
Height: 55 cm

Technical specifications

• Brand: Meyosis
• Model: MYS-503N2
• Standard: EN 60601-2-52
• Operation: 3 manual cranks (back, leg, height)
• Head/foot boards material: PP plastic
• Lying surface material: ABS plastic (4 sections)
• Side rails: 2 folding aluminum side rails
• Chassis finish: epoxy polyester electrostatic paint, covered with ABS plastic
• Wheels: Cross Brake System with locks on two cross wheels
• IV: 4 IV holes (corners) and one adjustable IV pole
• Bumpers: 4 corner bumpers
• Overall dimensions (W x L x H): 111 cm x 215 cm x 55 cm
