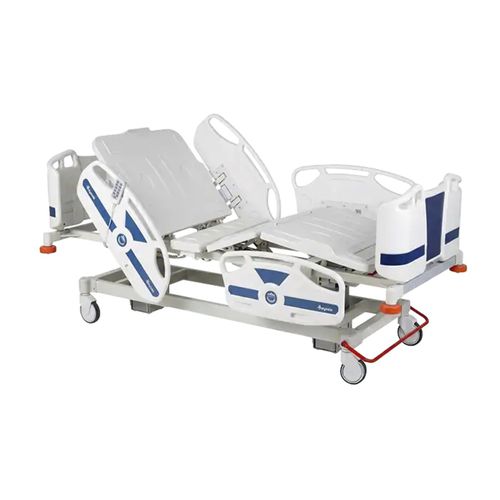

Intensive care bed MYS-5520NE

electricTrendelenburgheight-adjustable

Overview
Meyosis ICU patient bed designed to EN 60601-2-52 for intensive care use, providing configurable positioning and clinical functions for patients and staff.

Key features

• Backrest, legrest, knee articulation, height adjustment, vascular, Trendelenburg and reverse Trendelenburg positions controlled by 2 DC motors and 2 column motors.
• Patient-side hand control and attendant controls located at the head side.
• Electric CPR function and function-lock on attendant control.
• One-button preset positions: semi-fowler, shock, cardiac, examination and bed-exit on attendant hand control.
• 24V battery backup for continued operation during power loss.
• Dual auto-regression system to reduce abdominal pressure and pelvic shear.
• Removable polypropylene (PP) head and foot boards with colour panels.
• Split PP side rails with soft-drop release mechanism and angle indicator.
• Four independent, detachable ABS lying sections.
• Antibacterial electrostatic powder-coated steel frame and ABS-covered chassis.
• Ø125 mm, 360° swivel castors with central brake and directional lock.
• Corner accessory adaptors, 1 height-adjustable IV pole, urine bag holders and belt hooks on both sides.
• Protective plastic corner bumpers and alternative side-rail colour options.
• Included mattress: 26-density foam with antibacterial, waterproof, zippered cover (90 x 190 x 11 cm).

Dimensions
Width: 103 cm
Length: 218 cm
Minimum height: 49 cm
Maximum height: 88.5 cm

Mattress dimensions
Mattress width: 90 cm
Mattress length: 190 cm
Mattress thickness: 11 cm

Technical specifications

• Model: MYS-5520NE
• Motors: 2 DC + 2 column motors (controls: backrest, legrest, knee, height, vascular, Trendelenburg/reverse Trendelenburg)
• Control: Hand control (head side) and attendant controls with electric CPR and function lock
• Preset positions: semi-fowler, shock, cardiac, examination, bed exit (one-button)
• Battery: 24V battery backup
• Auto-regression: Dual auto-regression system to reduce abdominal pressure and pelvic friction
• Head/foot ends: Removable PP with colour panels
• Side rails: Split PP with soft-drop release and angle indicator
• Lying sections: 4 independent detachable ABS sections
• Frame: Antibacterial electrostatic powder-coated steel
• Chassis: ABS plastic covered
• Wheels: Ø125 mm, 360° swivel, central brake and directional lock
• Accessories: Corner adaptors, height-adjustable IV pole, urine bag holders, belt hooks, protective corner bumpers
• Mattress: 26-density foam, antibacterial, waterproof, zippered cover (90 x 190 x 11 cm)
• Overall dimensions: Width 103 cm, Length 218 cm
• Height range: Min 49 cm — Max 88.5 cm
