Hospital bed MYS-530N

electricpediatricTrendelenburg

Product Overview

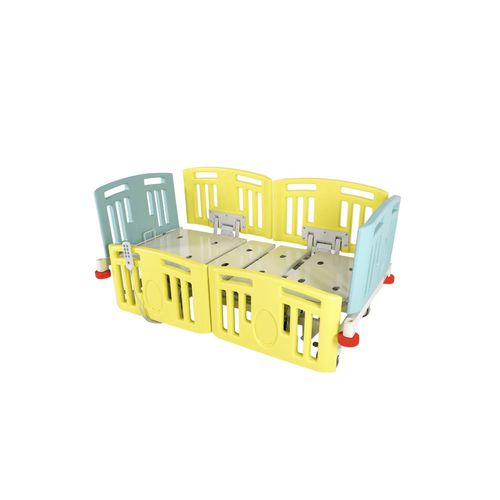

Meyosis MYS-530N pediatric hospital bed is designed in accordance with EN 60601-2-52 to provide ergonomic positioning for pediatric patients and efficient handling for clinical staff.

GENERAL FEATURES

• Electric adjustment of height, backrest, knee break and Trendelenburg/reverse Trendelenburg positions
• Electric Fowler position function
• Wired control panel for precise adjustments
• 4-section sleeping platform
• 4-piece drop-down side rails in easy-to-clean ABS
• Removable ABS head and foot boards with locking/unlocking system
• Casters with individual brakes
• Electrostatic powder-coated metal frame
• IV pole and shock-absorbing corner bumpers

DIMENSIONS AND CAPACITIES
Width: 90 cm
Length: 172 cm
Height: 65 cm

Mattress width: 70 cm
Mattress length: 150 cm
Mattress height: 11 cm
Maximum load capacity: 180 kg

TECHNICAL SPECIFICATIONS

• Model: MYS-530N
• Brand: Meyosis
• Standard: EN 60601-2-52
• Power / Actuation: 3 motors (height; backrest/knee break; Trendelenburg/Fowler functions)
• Control: Wired control panel
• Sleeping platform: 4-section
• Side rails: 4-piece ABS, drop-down with slow descent (gas springs or equivalent)
• Head & foot boards: Removable ABS with locking/unlocking
• Frame finish: Electrostatic powder-coated metal
• Casters: Individual brakes
• Accessories: IV pole, shock-absorbing corner bumpers
• Bed dimensions: 90 x 172 x 65 cm (W x L x H)
• Mattress dimensions: 70 x 150 x 11 cm (W x L x H)
• Maximum load capacity: 180 kg
